Rheem® 47-22861-02

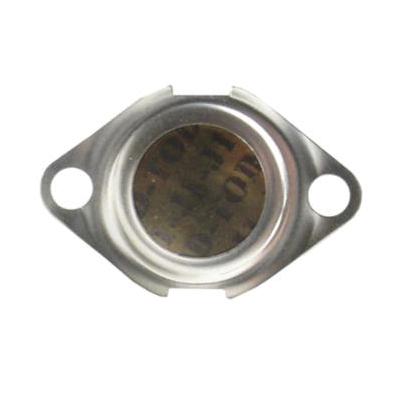

Rheem® 47-22861-02 Manual Reset Limit Switch, 120/230 VAC, 15/10 A, Switching Action: SPST
Brand: Rheem®
Item No: 47-22861-02
Sign In for Availability
Description
Rheem® Manual Reset Limit Switch, 120/230 VAC, 15/10 A, SPST Switching Action, 1NC Contact Configuration, 1 Pole, 300 deg F Opening Temperature, -31 deg F Closing Temperature, Quik-Connect Connection, 0.145 in Hole, Flanged Airstream Mounting, 1.18 in L x 0.81 in W, Blue, For Use With: R95TC, RGEA15(AT), RGEA15(AV), RGFD, RGGD, RGGE, RGJD, RGRA, RGRB, RGRJ, RGRK, RGSA, RGTA, RGTJ, RGTK and RKKA Gas Furnaces
Specifications
|
Amperage Rating |
15/10 A |
|
Brand Name |
Ruud |
|
Closing Temperature |
-31 deg F |
|
Color |
Blue |
|
Connection Type |
Quik-Connect |
|
Contact Configuration |
1NC |
|
Dimensions |
1.18 in L x 0.81 in W |
|
Dimension |
5.5 Inch Length x 4 Inch Width x 0.8 Inch Height |
|
Frequency Rating |
60 Hz |
|
Hole Size |
0.145 in |
|
Item Name |
Limit Switch |
|
Mounting Type |
Flanged Airstream |
|
Number of Poles |
1 |
|
Opening Temperature |
300 deg F |
|
Phase |
1 PH |
|
Suitable For Use With |
R95TC, RGEA15(AT), RGEA15(AV), RGFD, RGGD, RGGE, RGJD, RGRA, RGRB, RGRJ, RGRK, RGSA, RGTA, RGTJ, RGTK and RKKA Gas Furnaces |
|
Switching Action |
SPST |
|
Temperature Rating |
300 deg F |
|
Type |
Manual Reset |
|
Voltage Rating |
120/230 VAC |
