Rheem® 47-22861-05

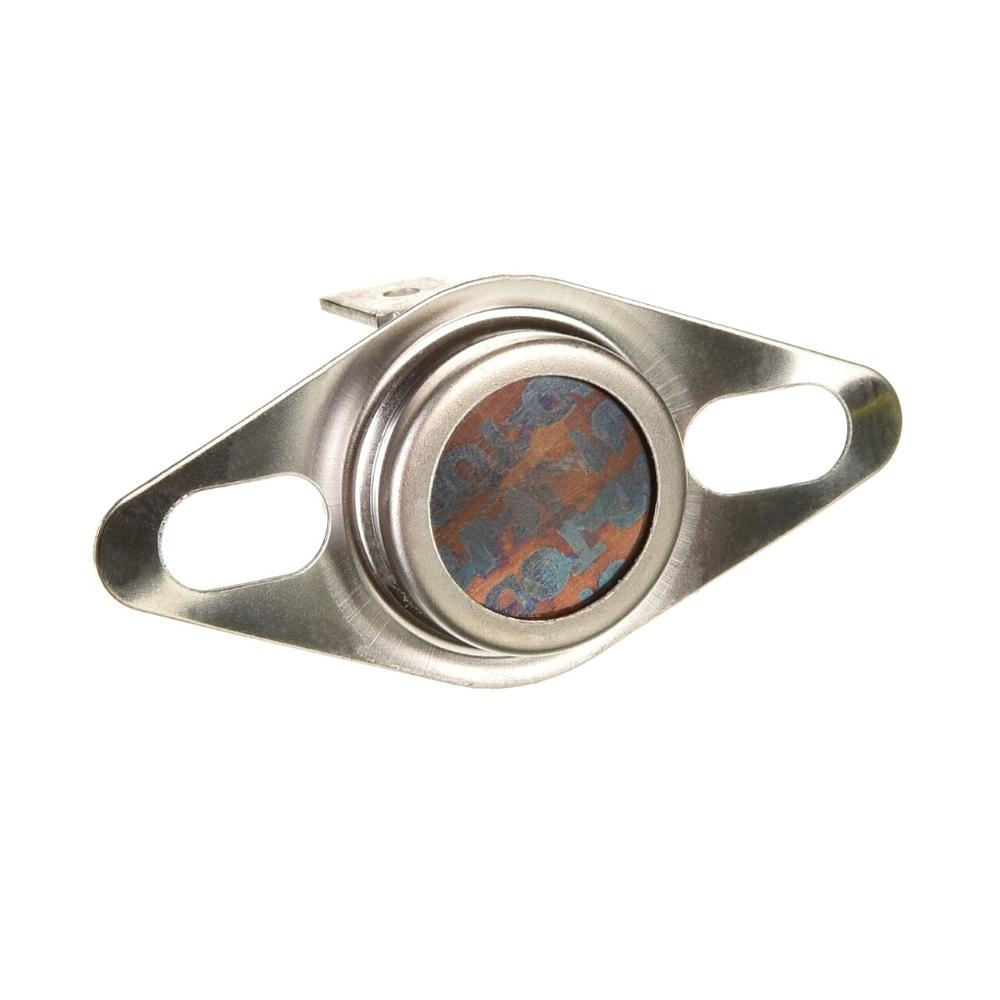

Rheem® 47-22861-05 Limit Switch, 120/230 VAC, 15/10 A, SPST Switch
Brand: Rheem®
Item No: 47-22861-05
Sign In for Availability
Description
The manual limit switch offers proven reliability in a compact, versatile, cost-effective design. The snap-action of the bimetal disc provides high-speed contact separation resulting in excellent life characteristics at electrical loads up to 15 A at 120 VAC, and 16 A at 250 VAC.
Rheem® Limit Switch, 120/230 VAC, 15/10 A, SPST Switch, Contact Configuration: NC, 1 -Pole, Opening Temperature: 350 deg F, Closing Temperature: -31 deg F, 1/4 in Quick-Connect Connection, Insertion Length: 5/32 in, Manual Actuator, Flanged Airstream Mount, 36T TOD Switch Series, Exposed Disc Face
Features
- Non-Trip free construction
Specifications
|
Actuator Type |
Manual |
|
Additional Information |
36T TOD Switch Series, Exposed Disc Face |
|
Amperage Rating |
15/10 A |
|
Closing Temperature |
-31 deg F |
|
Connection Type |
1/4 in Quick-Connect |
|
Contact Configuration |
NC |
|
Insertion Length |
5/32 in |
|
Mounting Type |
Flanged Airstream |
|
Number of Poles |
1 |
|
Opening Temperature |
350 deg F |
|
Switch Type |
SPST |
|
Voltage Rating |
120/230 VAC |
