Rheem® 47-25349-02

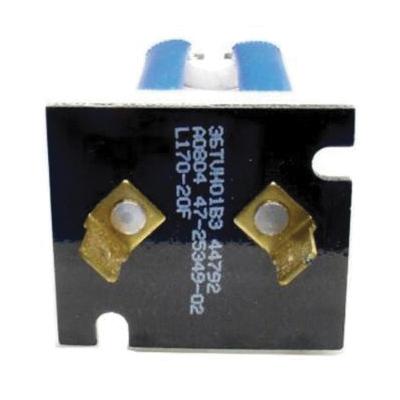

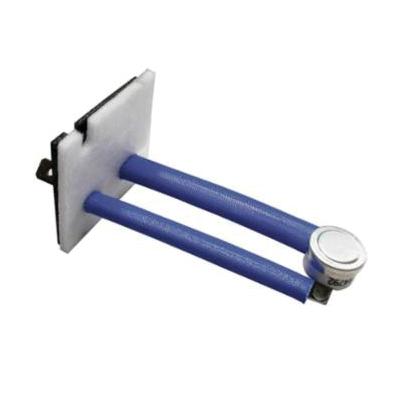

Rheem® 47-25349-02 Limit Control Switch, 120/230 VAC, 10/15 A, SPST Switch
Brand: Rheem®
Item No: 47-25349-02
Sign In for Availability
Description
Rheem® Limit Control Switch, 120/230 VAC, 10/15 A, SPST Switch, NC Contact Configuration, 1 Poles, 170 deg F Opening Temperature, 150 deg F Closing Temperature, 20 deg F, 1/4 in Quick-Connect Connection, Board Mounting, Blue, For Use With: R801C-ZSA,ZXA, R801T-ZSA, U802V-ZSA, U802V-ZSA,ZSB, UGDG, UGDJ, UGLR, UGPH, UGPJ, UGPK, UGVH, UGVJ, UKKB, ZSB and ZXA Gas Furnaces
Specifications
|
Amperage Rating |
10/15 A |
|
Closing Temperature |
150 deg F |
|
Color |
Blue |
|
Connection Type |
1/4 in Quick-Connect |
|
Contact Configuration |
NC |
|
Mounting Type |
Board |
|
Number of Poles |
1 |
|
Opening Temperature |
170 deg F |
|
Suitable For Use With |
R801C-ZSA,ZXA, R801T-ZSA, U802V-ZSA, U802V-ZSA,ZSB, UGDG, UGDJ, UGLR, UGPH, UGPJ, UGPK, UGVH, UGVJ, UKKB, ZSB and ZXA Gas Furnaces |
|
Switch Type |
SPST |
|
Temperature Rating |
20 deg F |
|
Voltage Rating |
120/230 VAC |
