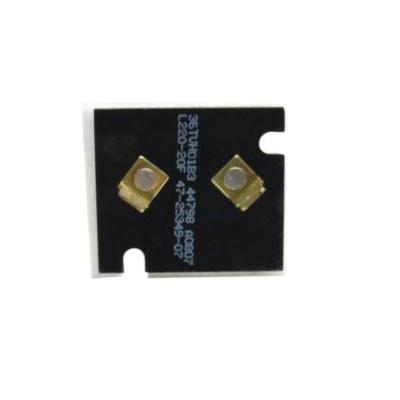

Rheem® 47-25349-07
Rheem® 47-25349-07 Limit Control Switch, 120/230 VAC, 15/10 A, SPST Switch, Switching Action: Auto Reset
Brand: Rheem®
Item No: 47-25349-07
Sign In for Availability
Description
Rheem® Limit Control Switch, 120/230 VAC, 15/10 A, SPST Switch, Auto Reset Switching Action, NC Contact Configuration, 1 Poles, 220 deg F Opening Temperature, 200 deg F Closing Temperature, Quick-Connect Connection, 3 in Insertion Length, Board Mounting, Green, For Use With: R801P-ZSA, ZSB, R801S-ZSA, ZSB, R801T-W801T-ZSA, ZSB, RGLG, RGLH, RGLJ, RGLK, RGLL, RGLN, RGVG Gas Furnaces
Specifications
|
Amperage Rating |
15/10 A |
|
Closing Temperature |
200 deg F |
|
Color |
Green |
|
Connection Type |
Quick-Connect |
|
Contact Configuration |
NC |
|
Insertion Length |
3 in |
|
Mounting Type |
Board |
|
Number of Poles |
1 |
|
Opening Temperature |
220 deg F |
|
Suitable For Use With |
R801P-ZSA, ZSB, R801S-ZSA, ZSB, R801T-W801T-ZSA, ZSB, RGLG, RGLH, RGLJ, RGLK, RGLL, RGLN, RGVG Gas Furnaces |
|
Switch Type |
SPST |
|
Switching Action |
Auto Reset |
|
Voltage Rating |
120/230 VAC |
