Rheem® 47-25350-07

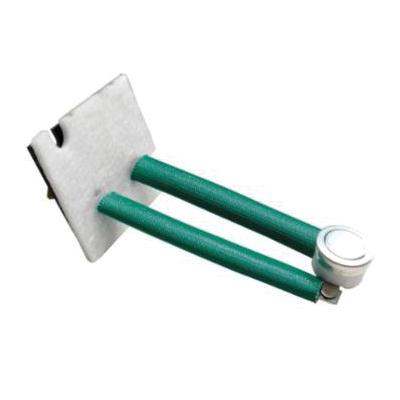

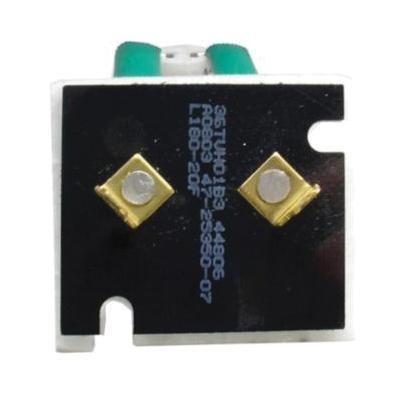

Rheem® 47-25350-07 Limit Control Switch, 120/230 VAC, 10/15 A, SPST Switch
Brand: Rheem®
Item No: 47-25350-07
Sign In for Availability
Description
Rheem® Limit Control Switch, 120/230 VAC, 10/15 A, SPST Switch, NC Contact Configuration, 1 Poles, 180 deg F Opening Temperature, 160 deg F Closing Temperature, 20 deg F, 1/4 in Quick-Connect Connection, Board Mounting, Green, For Use With: UGFD, UGGD, UGJD, UGRA, UGRC, UGRJ, UGRK, UGRL, UGRM, UGSA, UGTA, UGTC and UGTJ Gas Furnaces
Specifications
|
Amperage Rating |
10/15 A |
|
Closing Temperature |
160 deg F |
|
Color |
Green |
|
Connection Type |
1/4 in Quick-Connect |
|
Contact Configuration |
NC |
|
Mounting Type |
Board |
|
Number of Poles |
1 |
|
Opening Temperature |
180 deg F |
|
Suitable For Use With |
UGFD, UGGD, UGJD, UGRA, UGRC, UGRJ, UGRK, UGRL, UGRM, UGSA, UGTA, UGTC and UGTJ Gas Furnaces |
|
Switch Type |
SPST |
|
Temperature Rating |
20 deg F |
|
Voltage Rating |
120/230 VAC |
