Rheem® 51-100998-32

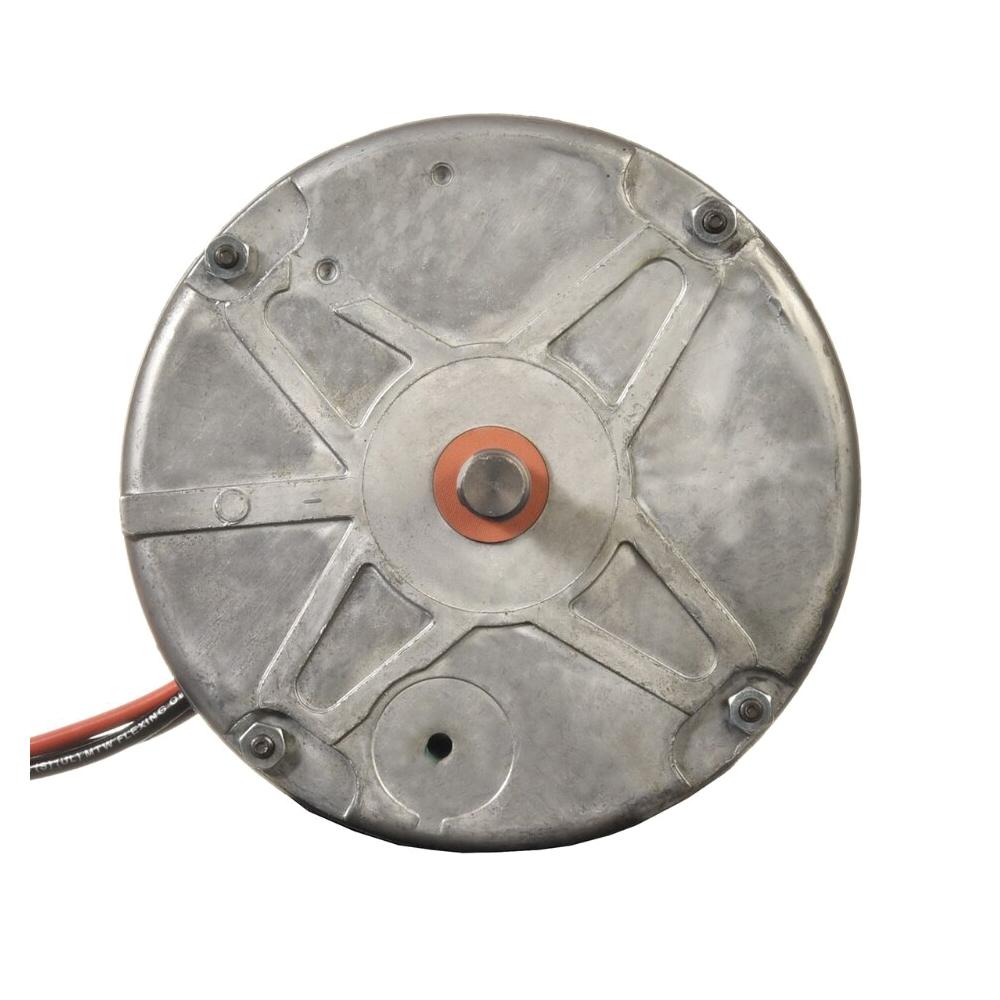

Rheem® 51-100998-32 Condenser Blower Motor, 1/3 hp, 208/230 V, 60 Hz, 1 ph-Phase, 48 in Frame, 1075 rpm Speed
Brand: Rheem®
Item No: 51-100998-32
Sign In for Availability
Description
Rheem® Condenser Blower Motor, 1/3 hp HP Rating, 208/230 V, 1.8 A, 60 Hz, 1 ph, 1075 rpm Speed Rating, 1 Speed, 48 in Frame, 1/2 in Dia x 3-21/32 in L Shaft, Ball Bearing, End Boss, Shell Band Mount, Additional Information: Direct Drive, 5-39/64 in Diameter x 8-3/8 in Length Motor
Features
- Suitable for aftermarket retrofit in many other applications
Specifications
|
Additional Information |
Direct Drive, 5-39/64 in Diameter x 8-3/8 in Length Motor |
|
Amperage Rating |
1.8 A |
|
Bearing Type |
Ball |
|
Frame |
48 in |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/3 hp |
|
Mounting Type |
End Boss, Shell Band |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 3-21/32 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
208/230 V |
