Rheem® 51-101728-07

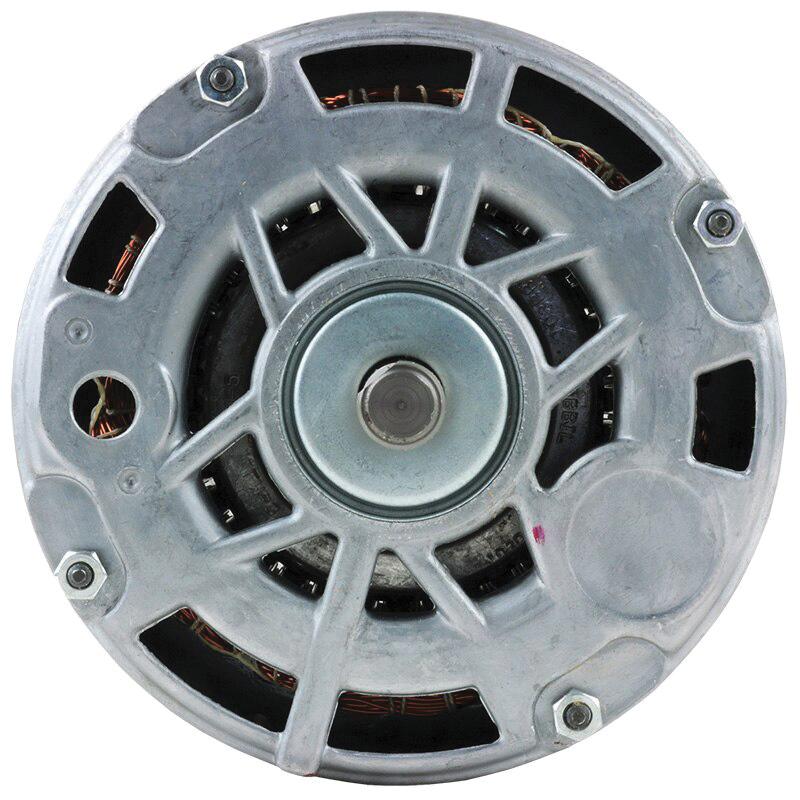

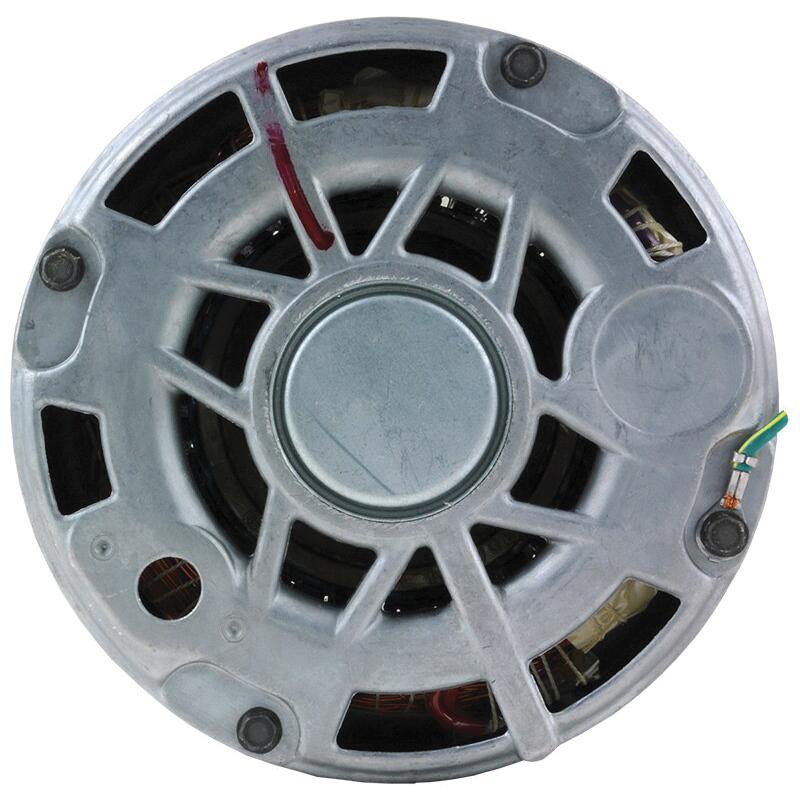

Rheem® 51-101728-07 Blower Motor, 3/4 hp, 208/230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
Brand: Rheem®
Item No: 51-101728-07
Sign In for Availability
Description
Rheem® Blower Motor, 3/4 hp, 208/230 V, 2.7 A, 60 Hz, 1 ph, 1075 rpm Speed, 2 Speed, Frame: 48, 1/2 in Dia x 5 in L Shaft, Sleeve, Shell Band Mount, 5-39/64 in OAW, 11 in OAD, Direct Drive, Counter-Clockwise Rotation, 6 in Motor Body Length
Specifications
|
Additional Information |
Direct Drive, Counter-Clockwise Rotation, 6 in Motor Body Length |
|
Amperage Rating |
2.7 A |
|
Bearing Type |
Sleeve |
|
Frame |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
3/4 hp |
|
Mounting Type |
Shell Band |
|
Number of Speeds |
2 |
|
Overall Depth |
11 in |
|
Overall Width |
5-39/64 in |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 5 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
208/230 V |
