Rheem® 51-101774-47

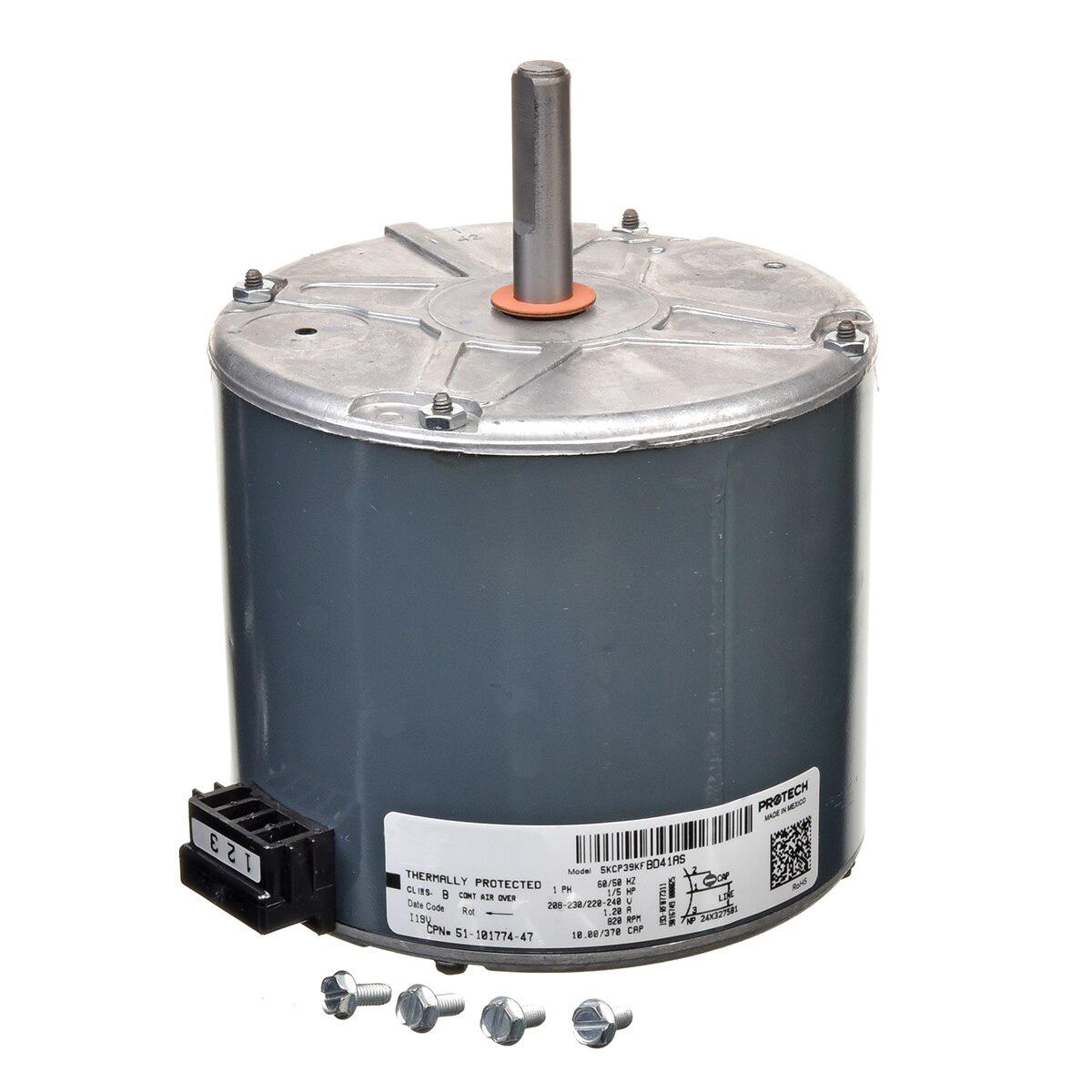

Rheem® 51-101774-47 Condenser Motor, 1/5 hp, 208/220/230 V, 50/60 Hz, 1 ph, 48 Frame, 825 rpm Speed
Brand: Rheem®
Item No: 51-101774-47
Sign In for Availability
Description
Rheem® Condenser Motor, 1/5 hp, 208/220/230 V, 1.2 A, 50/60 Hz, 1 ph, 825 rpm Speed, 1 Speed, Frame: 48, 1/2 in Dia x 2 in L Shaft, Ball, Shell Band Mount, 5-5/8 in OAW, 7 in OAD, Direct Drive, Counter-Clockwise Rotation, 5 in Motor Body Length
Specifications
|
Additional Information |
Direct Drive, Counter-Clockwise Rotation, 5 in Motor Body Length |
|
Amperage Rating |
1.2 A |
|
Bearing Type |
Ball |
|
Frame |
48 |
|
Frequency Rating |
50/60 Hz |
|
HP Rating |
1/5 hp |
|
Mounting Type |
Shell Band |
|
Number of Speeds |
1 |
|
Overall Depth |
7 in |
|
Overall Width |
5-5/8 in |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 2 in L |
|
Speed Rating |
825 rpm |
|
Voltage Rating |
208/220/230 V |
