Rheem® 51-101774-54

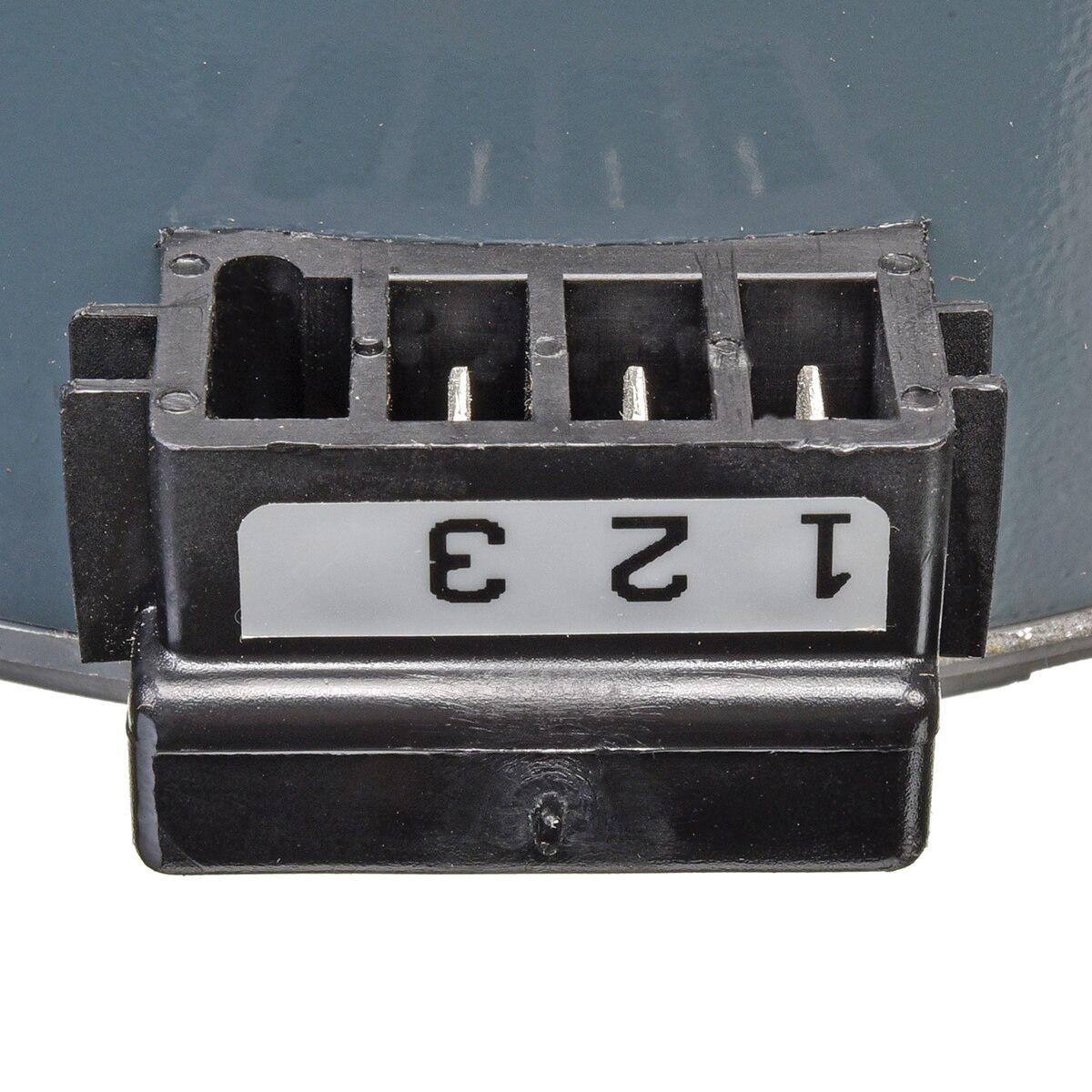

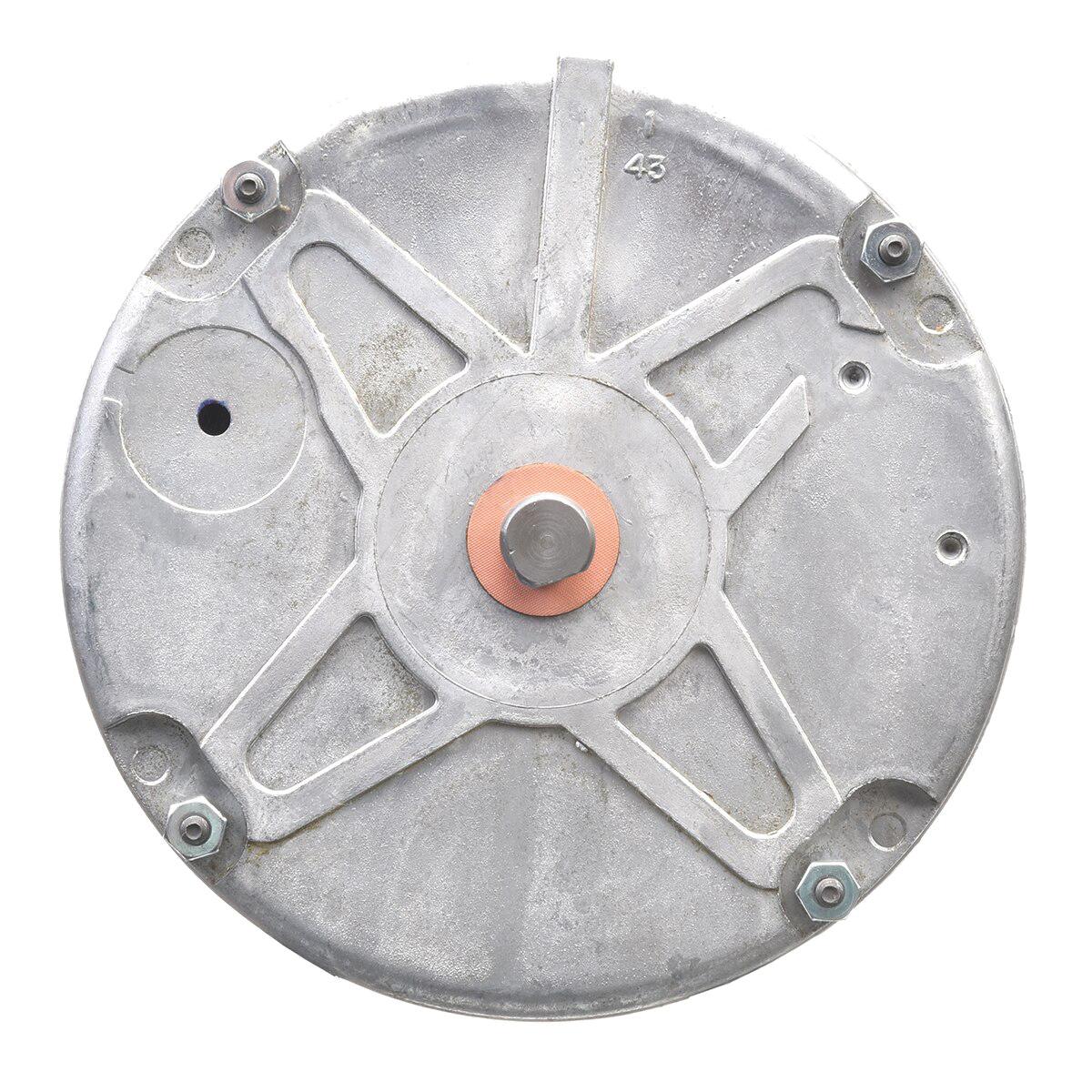

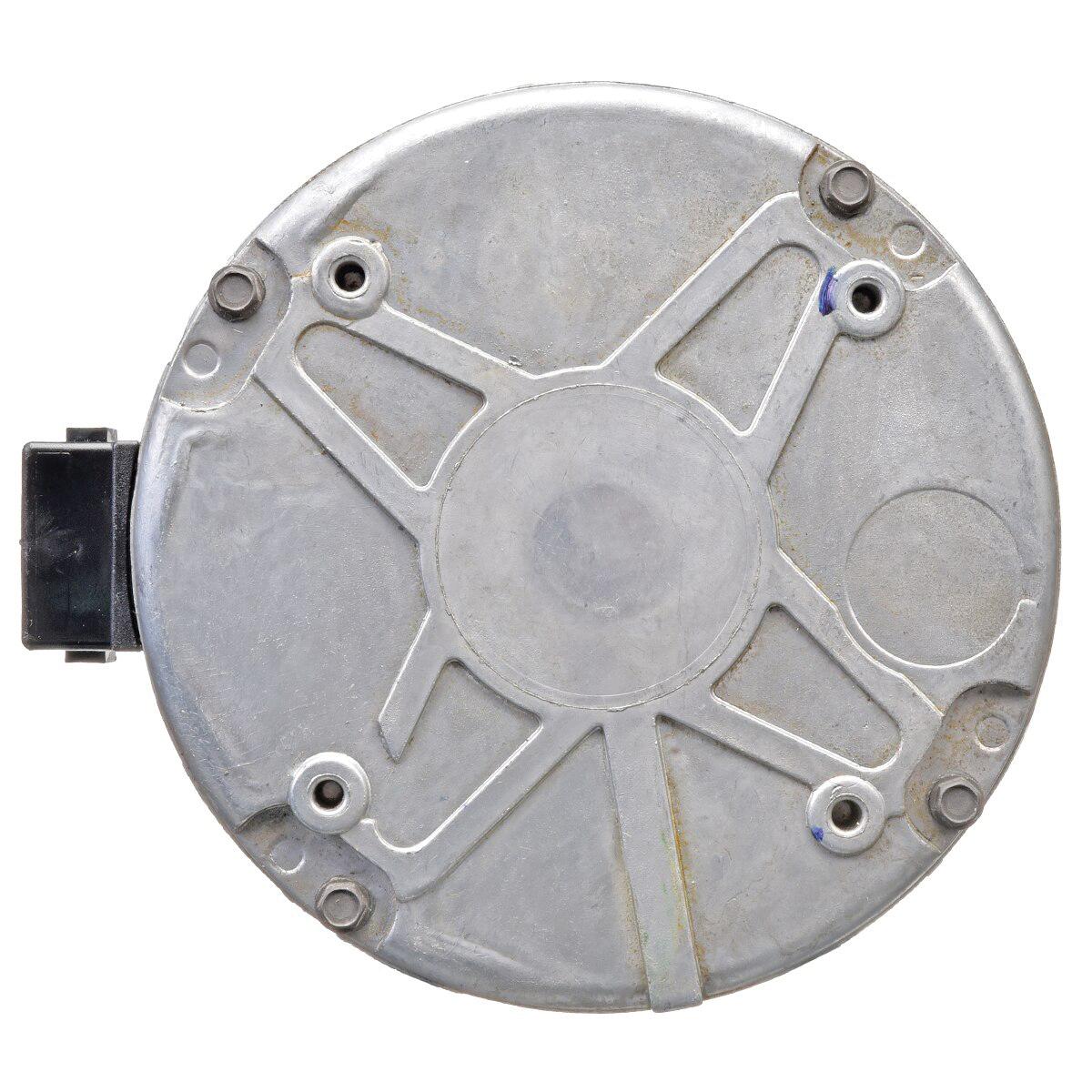

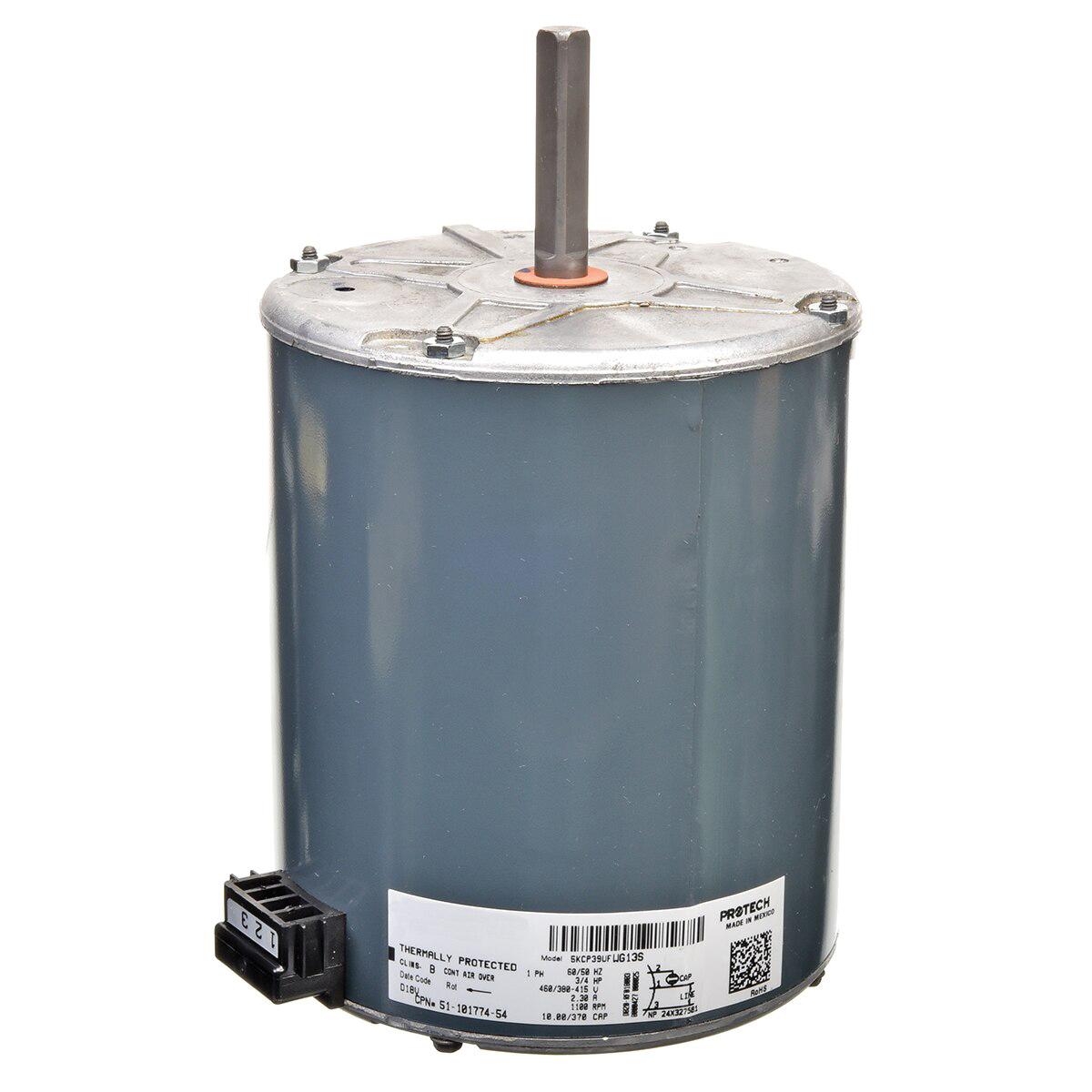

Rheem® 51-101774-54 Condenser Motor, 3/4 hp, 380 to 415/460 V, 50/60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
Brand: Rheem®
Item No: 51-101774-54
Sign In for Availability
Description
Rheem® Condenser Motor, 3/4 hp, 380 to 415/460 V, 2.3 A, 50/60 Hz, 1 ph, 1075 rpm Speed, 1 Speed, Frame: 48, 1/2 in Dia x 2 in L Shaft, Ball, Shell Band Mount, 5-5/8 in OAW, 8-15/16 in OAD, Direct Drive, Counter-Clockwise Rotation, 6-3/4 in Motor Body Length
Specifications
|
Additional Information |
Direct Drive, Counter-Clockwise Rotation, 6-3/4 in Motor Body Length |
|
Amperage Rating |
2.3 A |
|
Bearing Type |
Ball |
|
Frame |
48 |
|
Frequency Rating |
50/60 Hz |
|
HP Rating |
3/4 hp |
|
Mounting Type |
Shell Band |
|
Number of Speeds |
1 |
|
Overall Depth |
8-15/16 in |
|
Overall Width |
5-5/8 in |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 2 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
380 to 415/460 V |
