Rheem® 51-102008-08

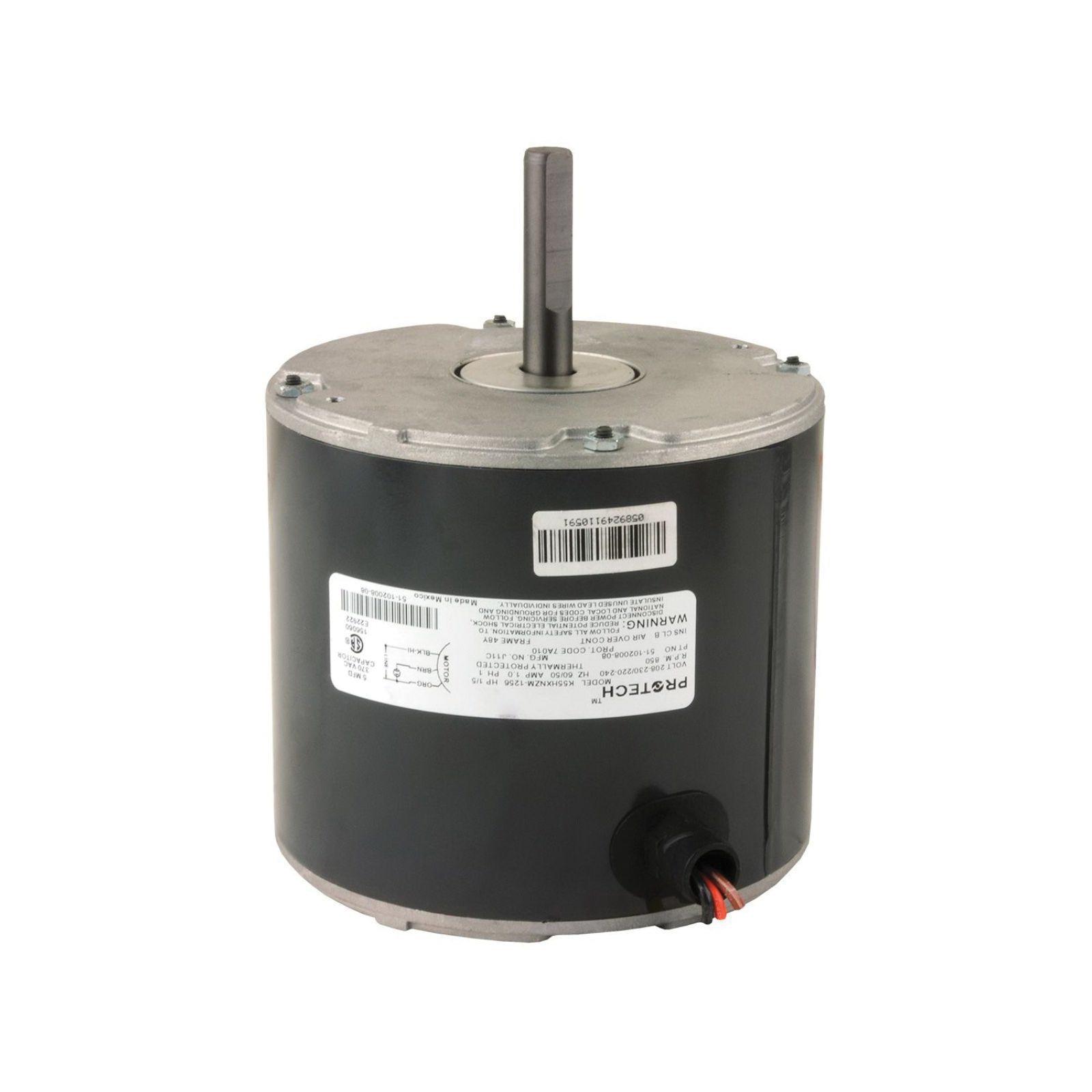

Rheem® 51-102008-08 Condenser Fan Motor, 208 to 230 V, 1 A Full Load, 1/5 hp, 825 rpm Speed, 1 ph -Phase, 50/60 Hz
Brand: Rheem®
Item No: 51-102008-08
Sign In for Availability
Description
Rheem® Condenser Fan Motor, 208 to 230 V, 1 A Full Load, 1/5 hp, 825 rpm, 1 ph Phase, 50/60 Hz, 48 Frame, 1/2 in Dia x 2-1/4 in L Shaft, CCW Rotation, 1 Speed, Ball Bearing, End-Boss, Shell-Band Mounting, Direct Drive, 5-5/8 in Dia x 5-1/16 in L, For Use With: RAPM-030J, RAPM-036J Condensing Units
Features
- Capacitor 5 uF at 370 VAC
Specifications
|
Amperage Rating |
1 A Full Load |
|
Bearing Type |
Ball |
|
Dimensions |
5-5/8 in Dia x 5-1/16 in L |
|
Drive Type |
Direct |
|
Frame Size |
48 |
|
Frequency Rating |
50/60 Hz |
|
HP Rating |
1/5 hp |
|
Mounting Type |
End-Boss, Shell-Band |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Rotation Type |
CCW |
|
Shaft Size |
1/2 in Dia x 2-1/4 in L |
|
Speed Rating |
825 rpm |
|
Suitable For Use With |
RAPM-030J, RAPM-036J Condensing Units |
|
Voltage Rating |
208 to 230 V |
