Rheem® 51-102008-27

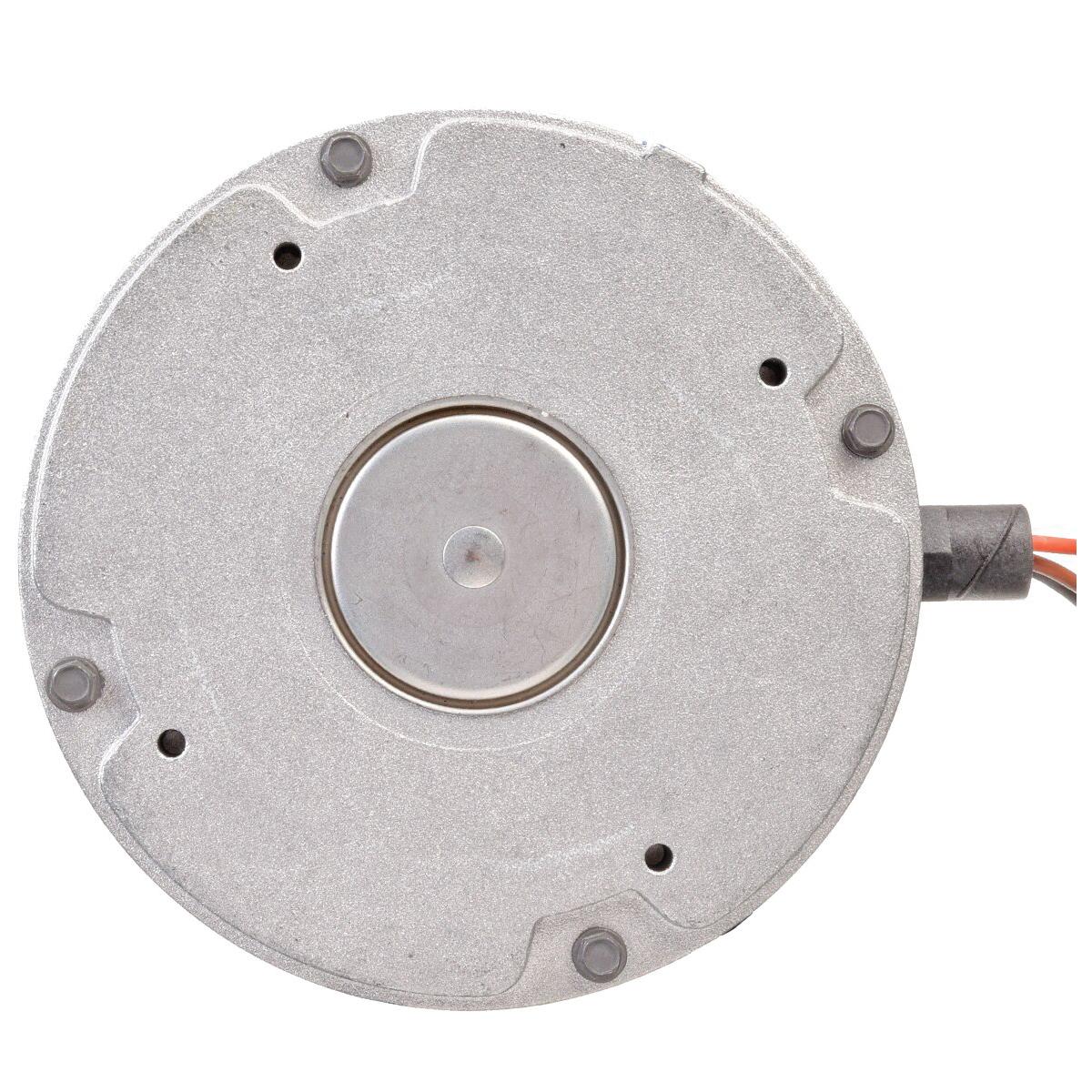

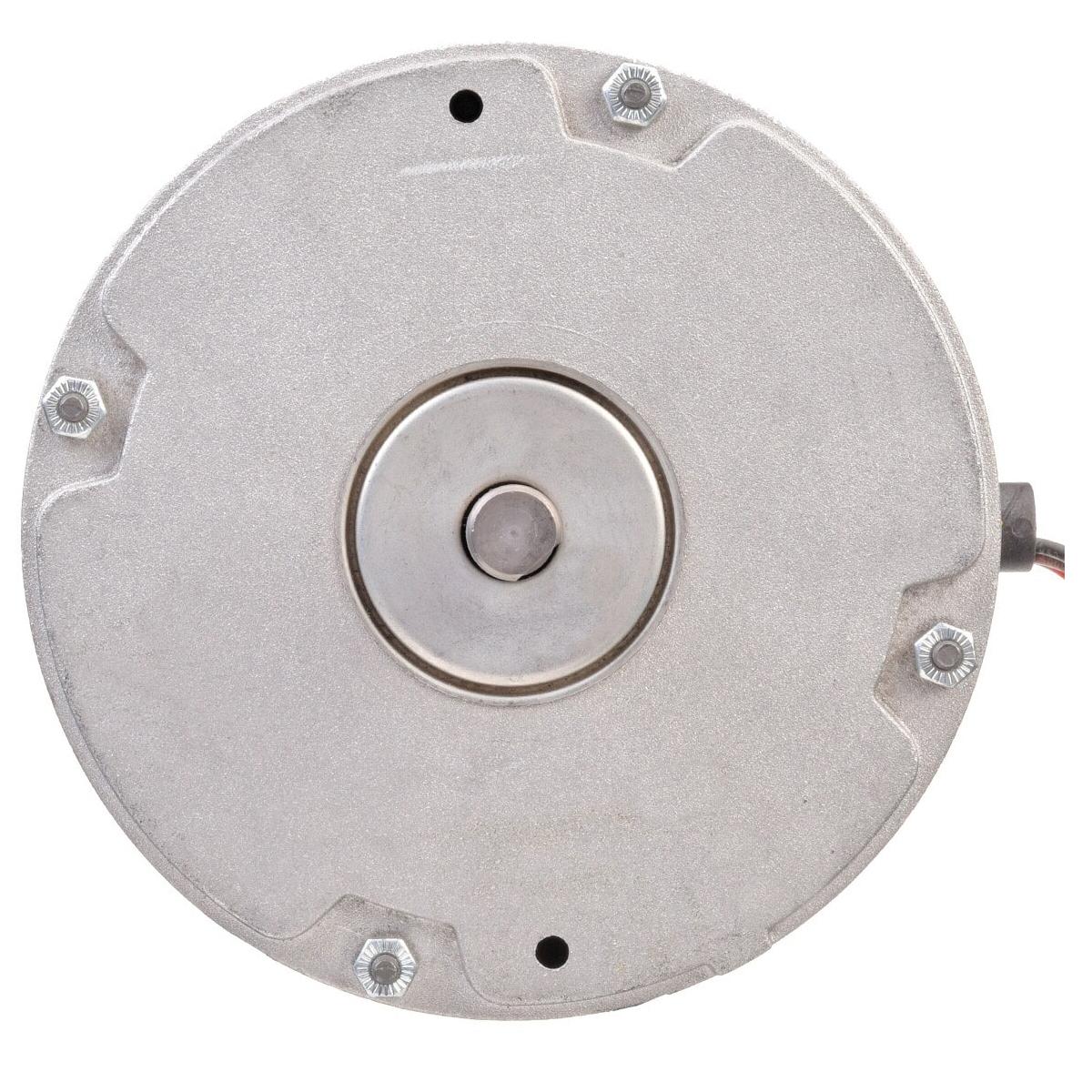

Rheem® 51-102008-27 Condenser Motor, 1/8 hp, 460 V, 60 Hz, 3 ph, 48 Frame, 1075 rpm Speed
Brand: Rheem®
Item No: 51-102008-27
Sign In for Availability
Description
Rheem® Condenser Motor, 1/8 hp, 460 V, 0.26 A, 60 Hz, 3 ph, 1075 rpm Speed, 1 Speed, Frame: 48, 1/2 in Dia x 1-3/4 in L Shaft, Ball, Shell Band Mount, 5-5/8 in OAW, 6-13/16 in OAD, Direct Drive, Reversible Rotation, 5-1/16 in Motor Body Length
Specifications
|
Additional Information |
Direct Drive, Reversible Rotation, 5-1/16 in Motor Body Length |
|
Amperage Rating |
0.26 A |
|
Bearing Type |
Ball |
|
Frame |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/8 hp |
|
Mounting Type |
Shell Band |
|
Number of Speeds |
1 |
|
Overall Depth |
6-13/16 in |
|
Overall Width |
5-5/8 in |
|
Phase |
3 ph |
|
Shaft Size |
1/2 in Dia x 1-3/4 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
460 V |
