Rheem® 51-103624-03

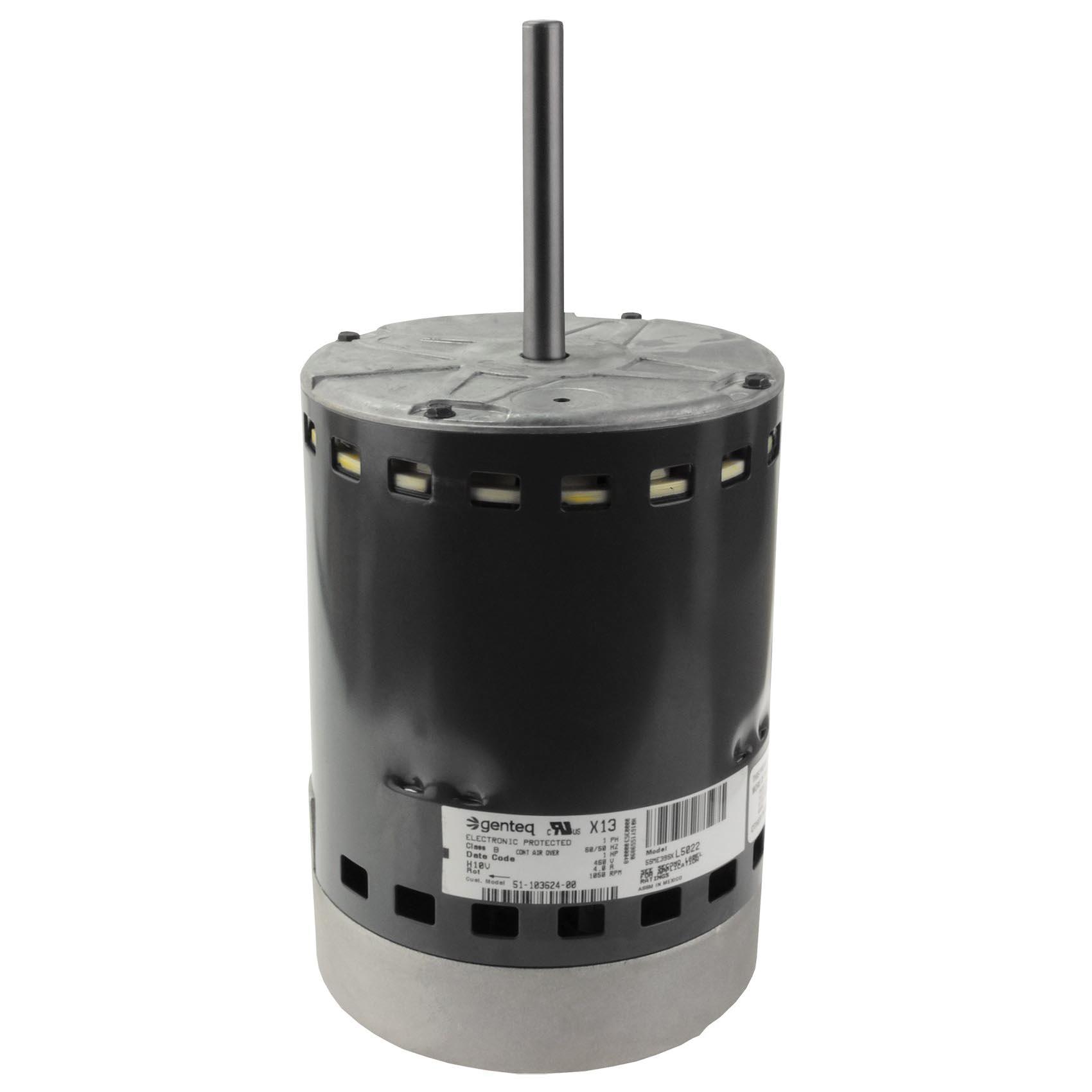

Rheem® 51-103624-03 Endura Pro Blower Motor, 1 hp, 460 V, 50/60 Hz, 1 ph, 48 Frame
Brand: Rheem®
Item No: 51-103624-03
Sign In for Availability
Description
Rheem® Endura Pro Blower Motor, 1 hp, 460 V, 50/60 Hz, 1 ph, Frame: 48, 1/2 in Dia x 3-7/8 in L Shaft, Ball, Shell Band Mount, 5-5/8 in OAW, 12 in OAD, Direct Drive, 8-1/2 in Motor Body Length
Specifications
|
Additional Information |
Direct Drive, 8-1/2 in Motor Body Length |
|
Bearing Type |
Ball |
|
Frame |
48 |
|
Frequency Rating |
50/60 Hz |
|
HP Rating |
1 hp |
|
Mounting Type |
Shell Band |
|
Overall Depth |
12 in |
|
Overall Width |
5-5/8 in |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 3-7/8 in L |
|
Voltage Rating |
460 V |
