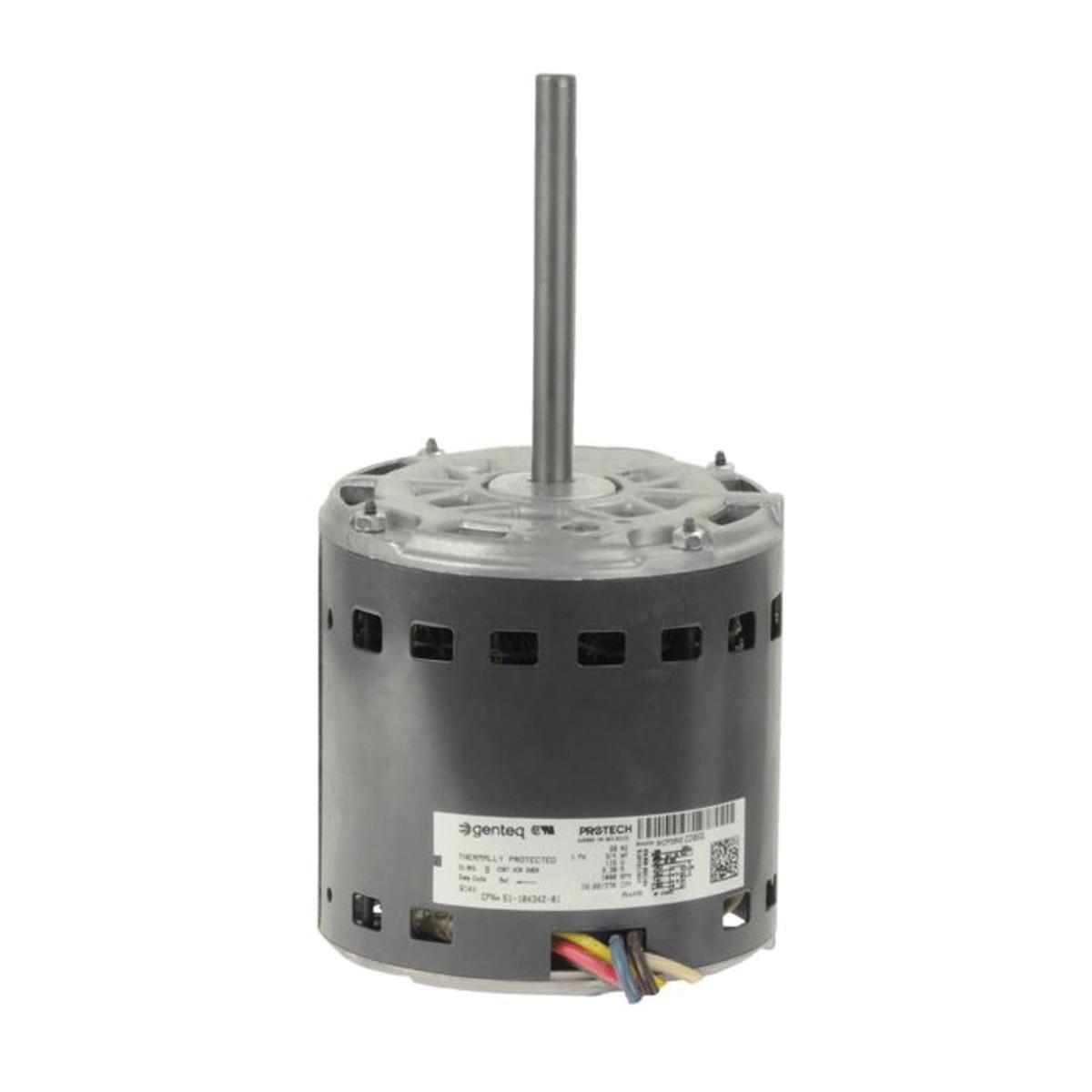

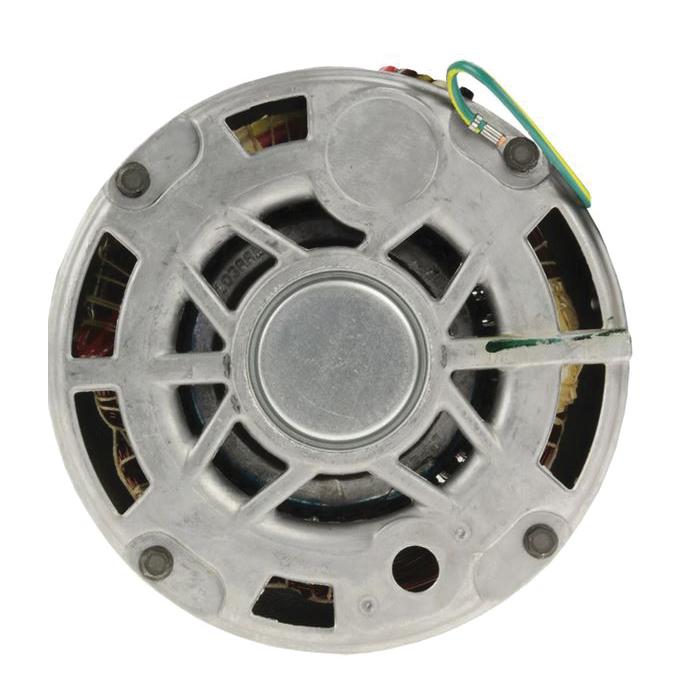

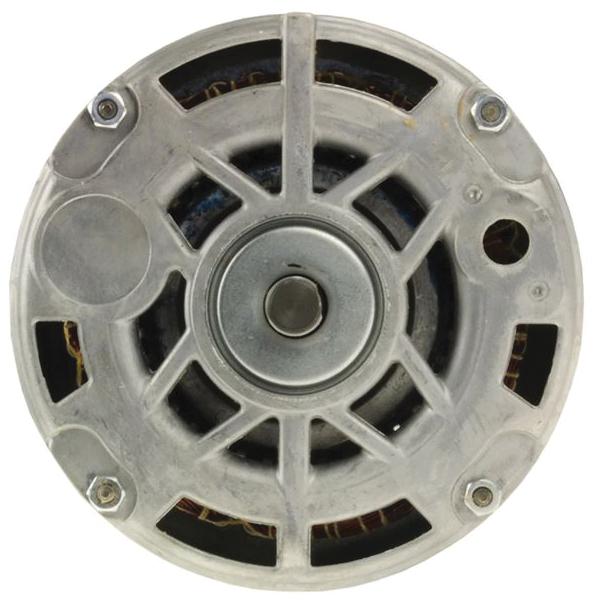

Rheem® 51-104342-01
Rheem® 51-104342-01 Blower Motor, 3/4 hp, 120 V, 60 Hz, 1 ph-Phase, 48 Frame, 1075 rpm Speed
Brand: Rheem®
Item No: 51-104342-01
Sign In for Availability
Description
Rheem® Blower Motor, 3/4 hp HP Rating, 120 V, 8.3 A, 60 Hz, 1 ph, 1075 rpm Speed Rating, 4 Speed, 48 Frame, 1/2 in Dia x 4-3/4 in L Shaft, Sleeve Bearing, 5-5/8 in Overall Width, 10-3/32 in Overall Height, For Use With: Ruud R92PA Gas Furnaces, Additional Information: Clockwise/Counter-Clockwise Rotation, Direct Drive
Specifications
|
Additional Information |
Clockwise/Counter-Clockwise Rotation, Direct Drive |
|
Amperage Rating |
8.3 A |
|
Bearing Type |
Sleeve |
|
Frame |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
3/4 hp |
|
Number of Speeds |
4 |
|
Overall Height |
10-3/32 in |
|
Overall Width |
5-5/8 in |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 4-3/4 in L |
|
Speed Rating |
1075 rpm |
|
Suitable For Use With |
Ruud R92PA Gas Furnaces |
|
Voltage Rating |
120 V |
