Rheem® 51-104691-02

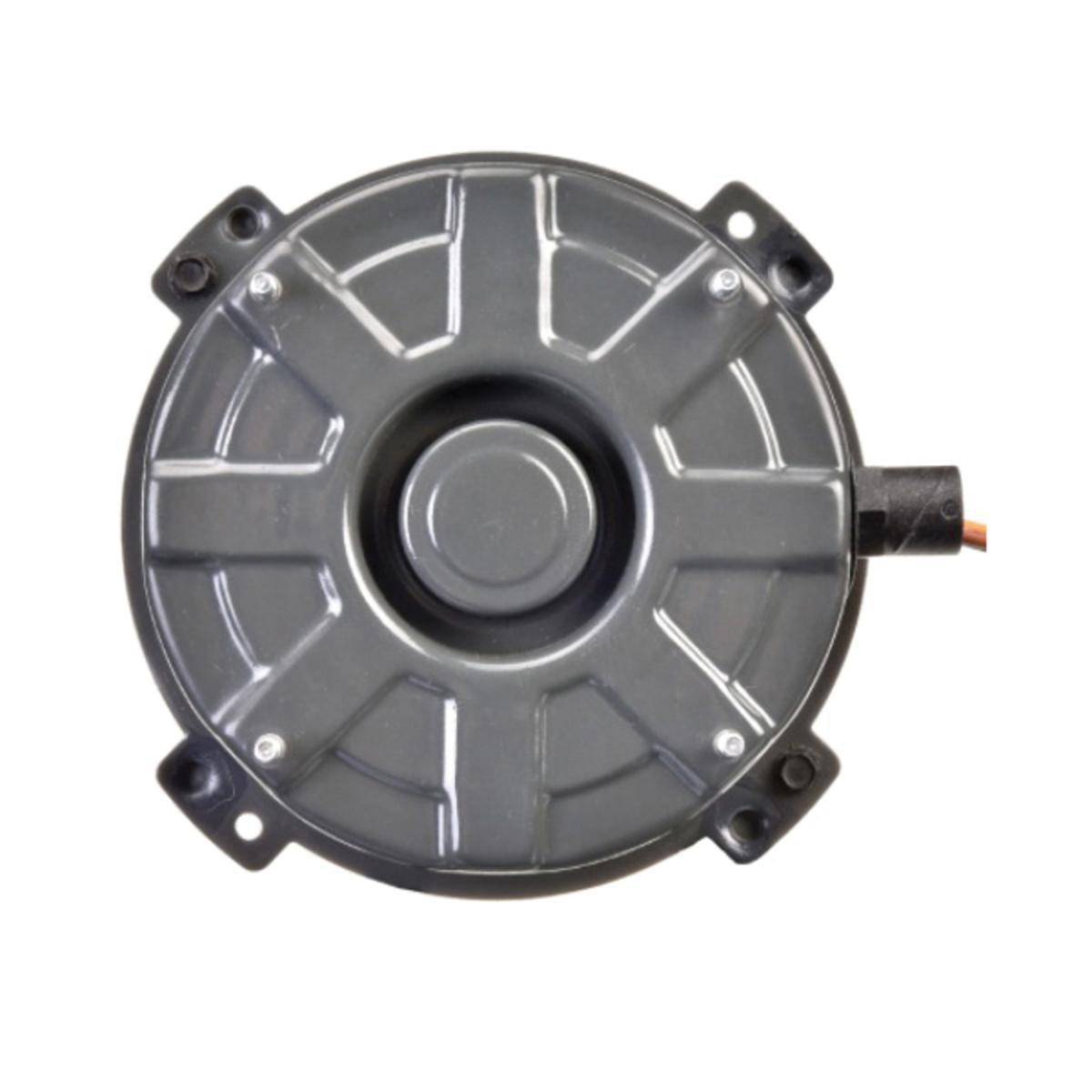

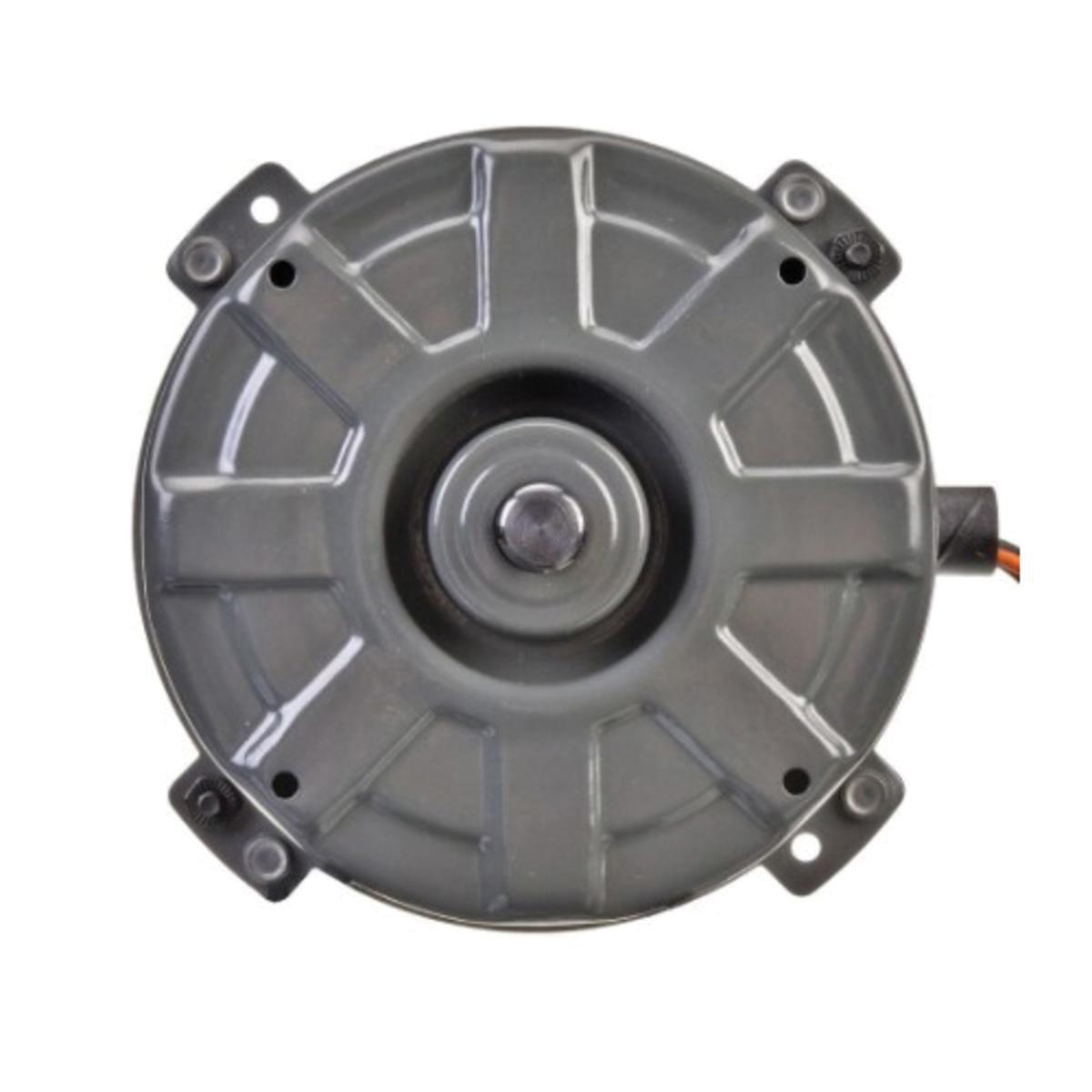

Rheem® 51-104691-02 Condenser Motor, 1/10 hp, 208/230 V, 60 Hz, 1 ph-Phase, 42 Frame, 825 rpm Speed
Brand: Rheem®
Item No: 51-104691-02
Sign In for Availability
Description
Rheem® Condenser Motor, 1/10 hp HP Rating, 208/230 V, 0.95 A, 60 Hz, 1 ph, 825 rpm Speed Rating, 1 Speed, 42 Frame, 1/2 in Dia x 1-19/32 in L Shaft, Ball Bearing, Thru-Bolt Mount
Specifications
|
Amperage Rating |
0.95 A |
|
Bearing Type |
Ball |
|
Frame |
42 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/10 hp |
|
Mounting Type |
Thru-Bolt |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 1-19/32 in L |
|
Speed Rating |
825 rpm |
|
Voltage Rating |
208/230 V |
