Rheem® 51-104940-02

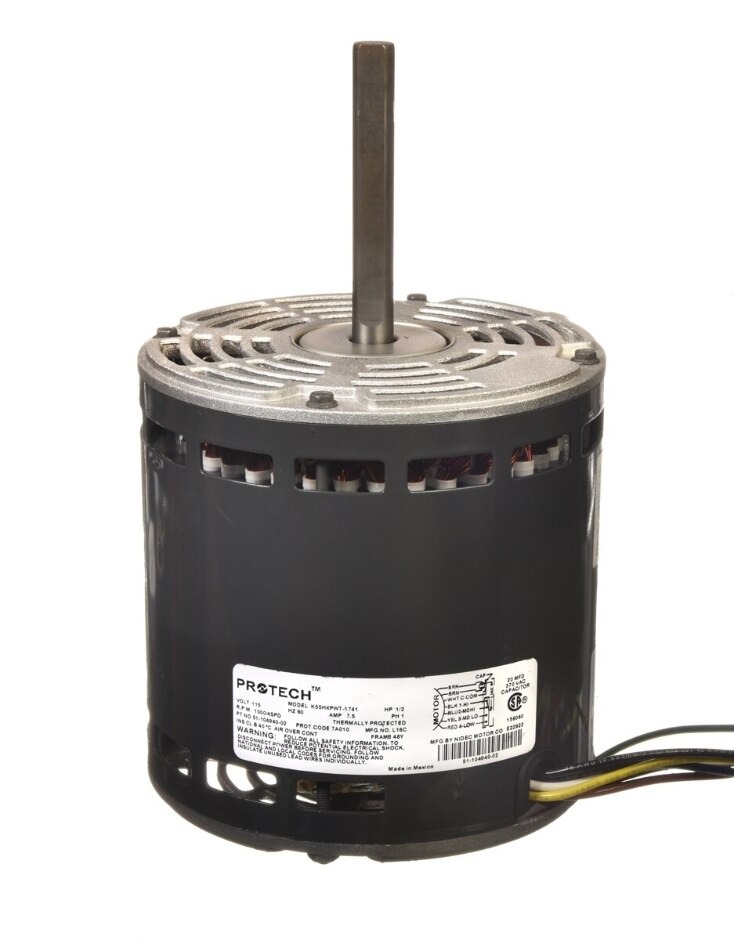

Rheem® 51-104940-02 Blower Motor, 120 VAC, 7.5 A, 1/2 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz
Brand: Rheem®
Item No: 51-104940-02
Sign In for Availability
Description
Rheem® Blower Motor, 120 VAC, 7.5 A, 1/2 hp, 1075 rpm, 1 ph Phase, 60 Hz, 1/2 in Dia x 3-1/2 in L Shaft, Counter-Clockwise Rotation, 4 Speed, Ball Bearing, Shell Band Mounting, Direct Drive, 5-5/8 in Dia x 9-1/16 in L
Features
- Capacitor 20 uF at 370 VAC
Specifications
|
Amperage Rating |
7.5 A |
|
Bearing Type |
Ball |
|
Dimensions |
5-5/8 in Dia x 9-1/16 in L |
|
Drive Type |
Direct |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/2 hp |
|
Mounting Type |
Shell Band |
|
Number of Speeds |
4 |
|
Phase |
1 ph |
|
Rotation Type |
Counter-Clockwise |
|
Shaft Size |
1/2 in Dia x 3-1/2 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
120 VAC |
