Rheem® 51-104941-01

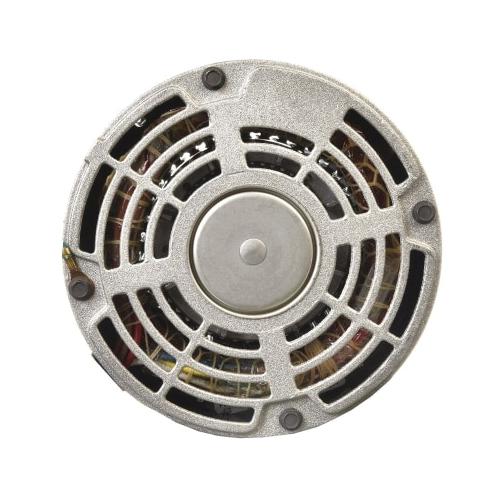

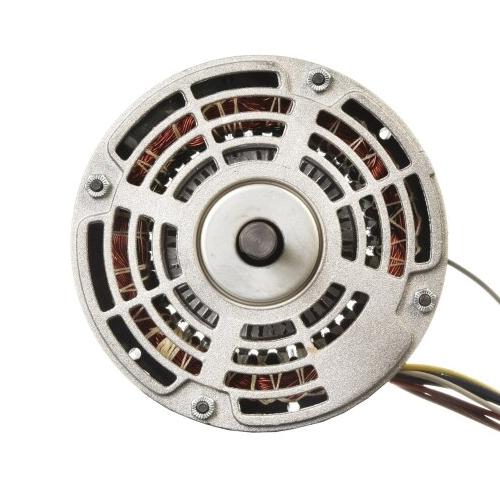

Rheem® 51-104941-01 Blower Motor, 3/4 hp, 120 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
Brand: Rheem®
Item No: 51-104941-01
Sign In for Availability
Description
Rheem® Blower Motor, 3/4 hp, 120 V, 8.4 A, 60 Hz, 1 ph, 1075 rpm Speed, 4 Speed, Frame: 48, 1/2 in Dia x 3-1/2 in L Shaft, Ball, Shell Band Mount, 5-5/8 in OAW, 9-1/16 in OAD, For Use With R801P-MSA and MXA 80% Gas Furnaces, Direct Drive, Counter-Clockwise Rotation, 5-9/16 in Motor Body Length
Specifications
|
Additional Information |
Direct Drive, Counter-Clockwise Rotation, 5-9/16 in Motor Body Length |
|
Amperage Rating |
8.4 A |
|
Bearing Type |
Ball |
|
Dimensions |
5-5/8 in Dia x 9-1/16 in L |
|
Drive Type |
Direct |
|
Frame Size |
48 |
|
Frame |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
3/4 hp |
|
Mounting Type |
Shell Band |
|
Number of Speeds |
4 |
|
Overall Depth |
9-1/16 in |
|
Overall Width |
5-5/8 in |
|
Phase |
1 ph |
|
Rotation Type |
CCW |
|
Shaft Size |
1/2 in Dia x 3-1/2 in L |
|
Speed Rating |
1075 rpm |
|
Suitable For Use With |
R801P-MSA and MXA 80% Gas Furnaces |
|
Voltage Rating |
120 V |
