Rheem® 51-108481-01

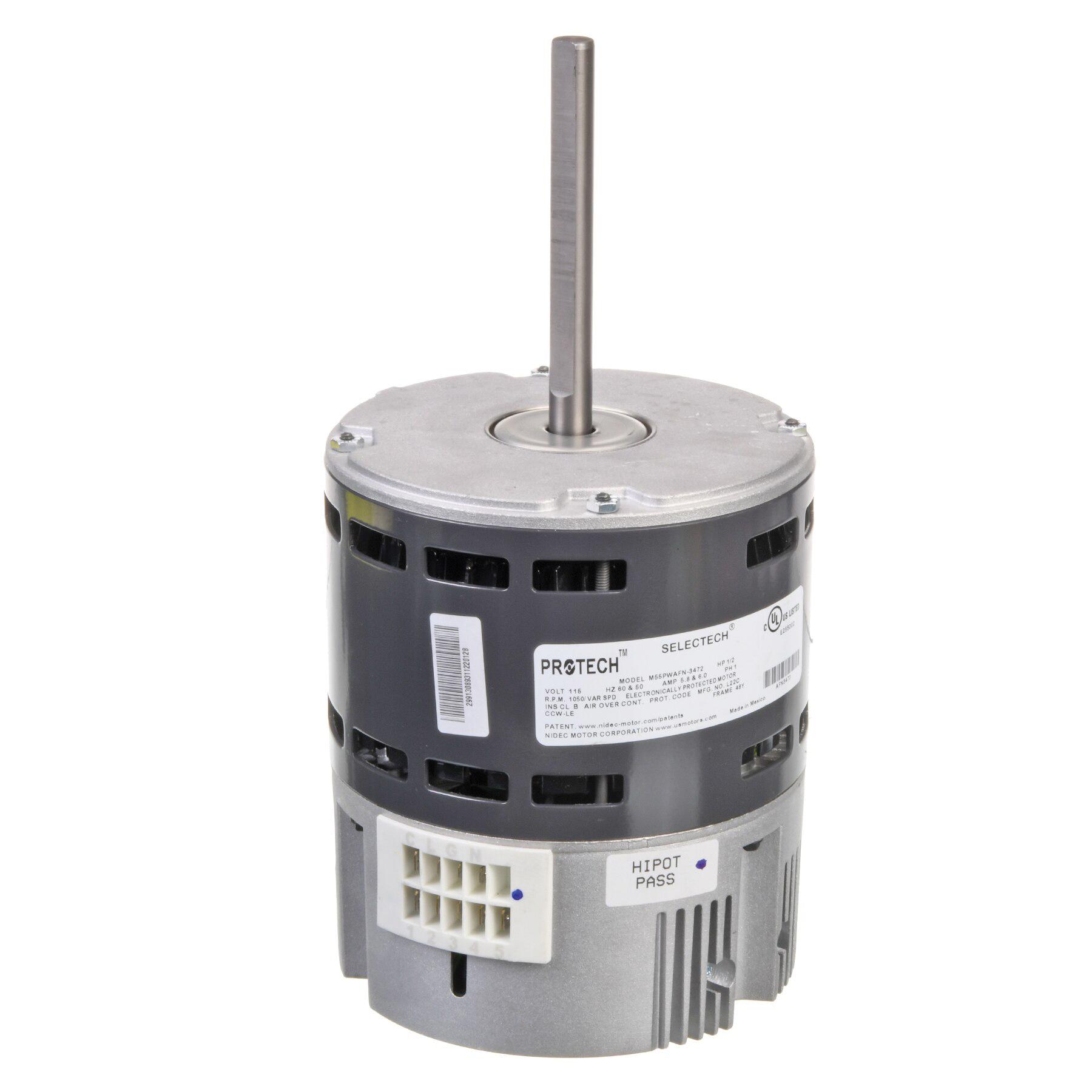

Rheem® 51-108481-01 SelecTech Gen 3 Condenser Motor, 1/2 hp, 115 V, 60 Hz, 1 ph, 48Y Frame
Brand: Rheem®
Item No: 51-108481-01
Sign In for Availability
Description
Rheem® SelecTech Gen 3 Condenser Motor, 1/2 hp, 115 V, 60 Hz, 1 ph, Frame: 48Y, 1/2 in Dia x 4-1/2 in L Shaft, Ball, Shell Band Mount, 5-5/8 in OAW, 11-1/8 in OAD, Direct Drive, 6-5/8 in Motor Body Length
Specifications
|
Additional Information |
Direct Drive, 6-5/8 in Motor Body Length |
|
Bearing Type |
Ball |
|
Frame |
48Y |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/2 hp |
|
Mounting Type |
Shell Band |
|
Overall Depth |
11-1/8 in |
|
Overall Width |
5-5/8 in |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 4-1/2 in L |
|
Voltage Rating |
115 V |
