Rheem® 51-24272-01

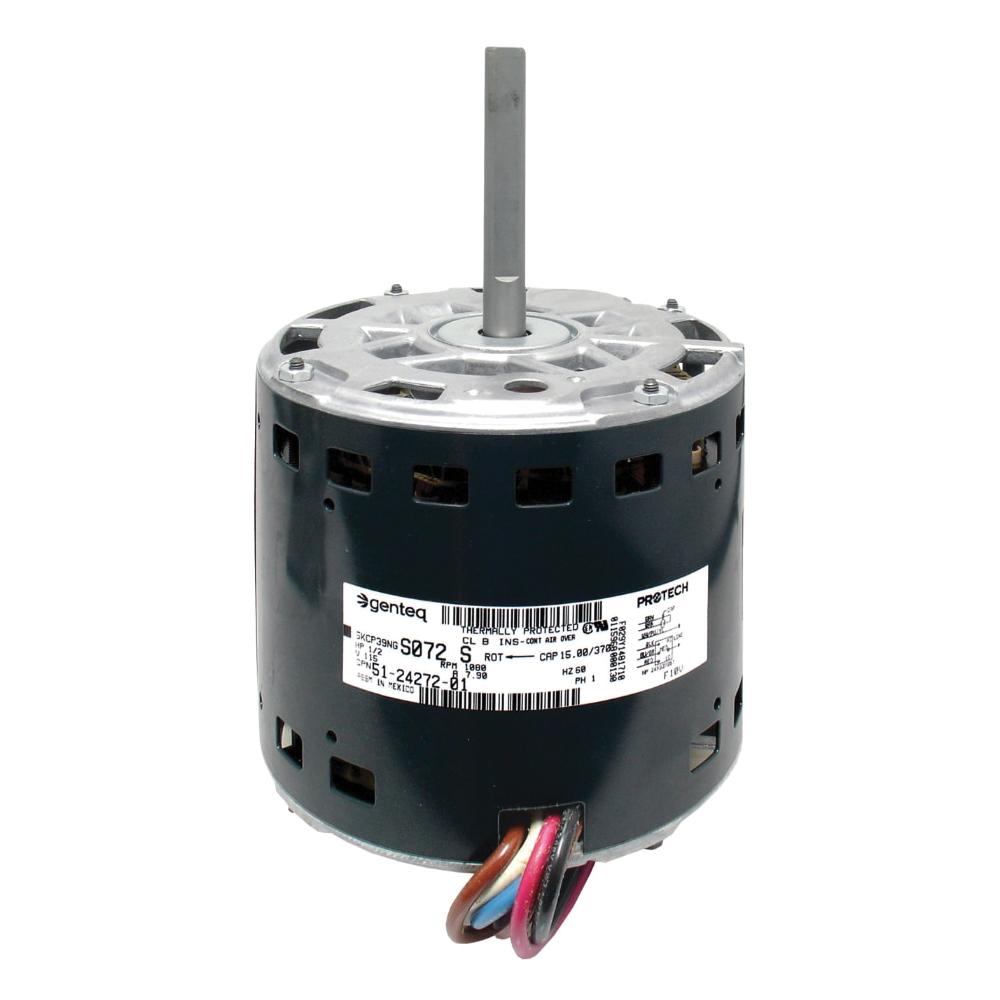

Rheem® 51-24272-01 Blower Motor, 1/2 hp, 120 V, 60 Hz, 1 ph-Phase, 48 in Frame, 1075 rpm Speed
Brand: Rheem®
Item No: 51-24272-01
Sign In for Availability
Description
Rheem® Blower Motor, 1/2 hp HP Rating, 120 V, 60 Hz, 1 ph, 1075 rpm Speed Rating, 3 Speed, 48 in Frame, 1/2 in Dia x 3/4 in L Shaft, Sleeve Bearing, Shell Band, Shell Screw Mount, Additional Information: Direct Drive, 5-1/4 in Diameter x 9-1/16 in Length Motor
Specifications
|
Additional Information |
Direct Drive, 5-1/4 in Diameter x 9-1/16 in Length Motor |
|
Bearing Type |
Sleeve |
|
Frame |
48 in |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/2 hp |
|
Mounting Type |
Shell Band, Shell Screw |
|
Number of Speeds |
3 |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 3/4 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
120 V |
