Rheem® 51-42534-01

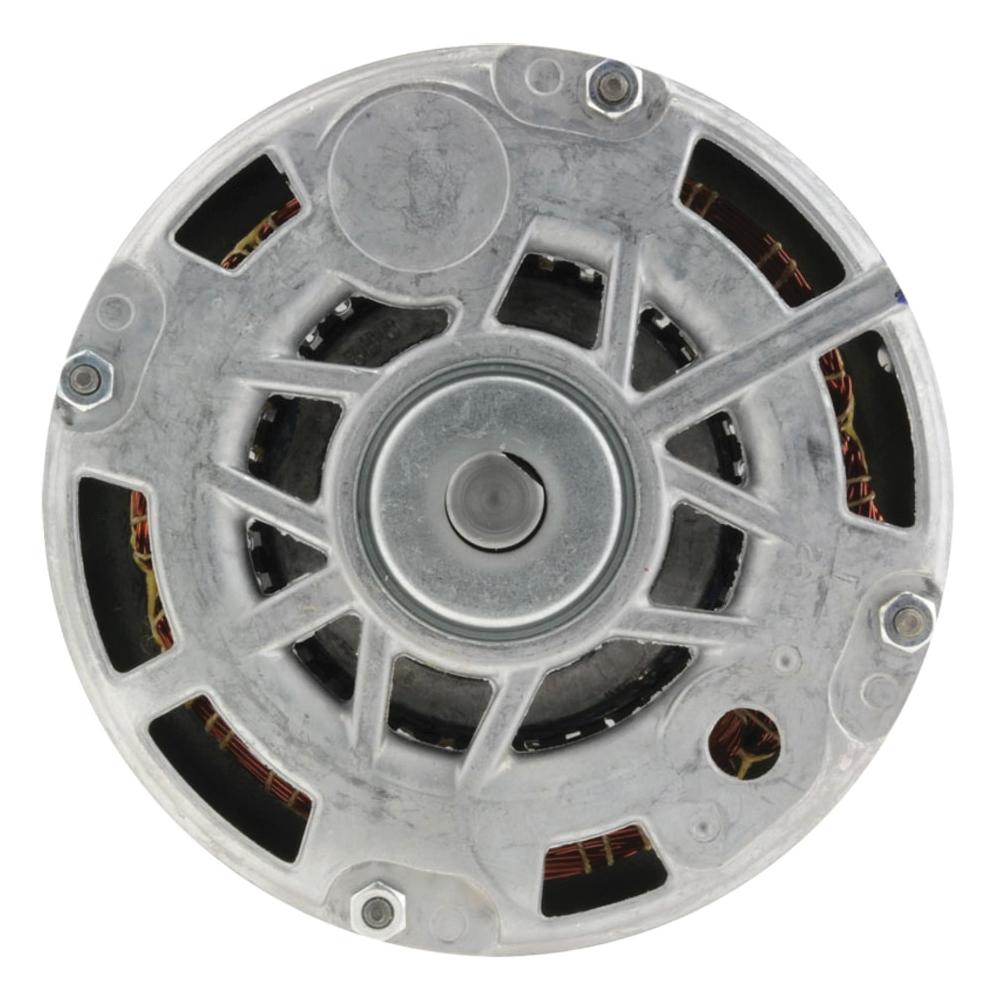

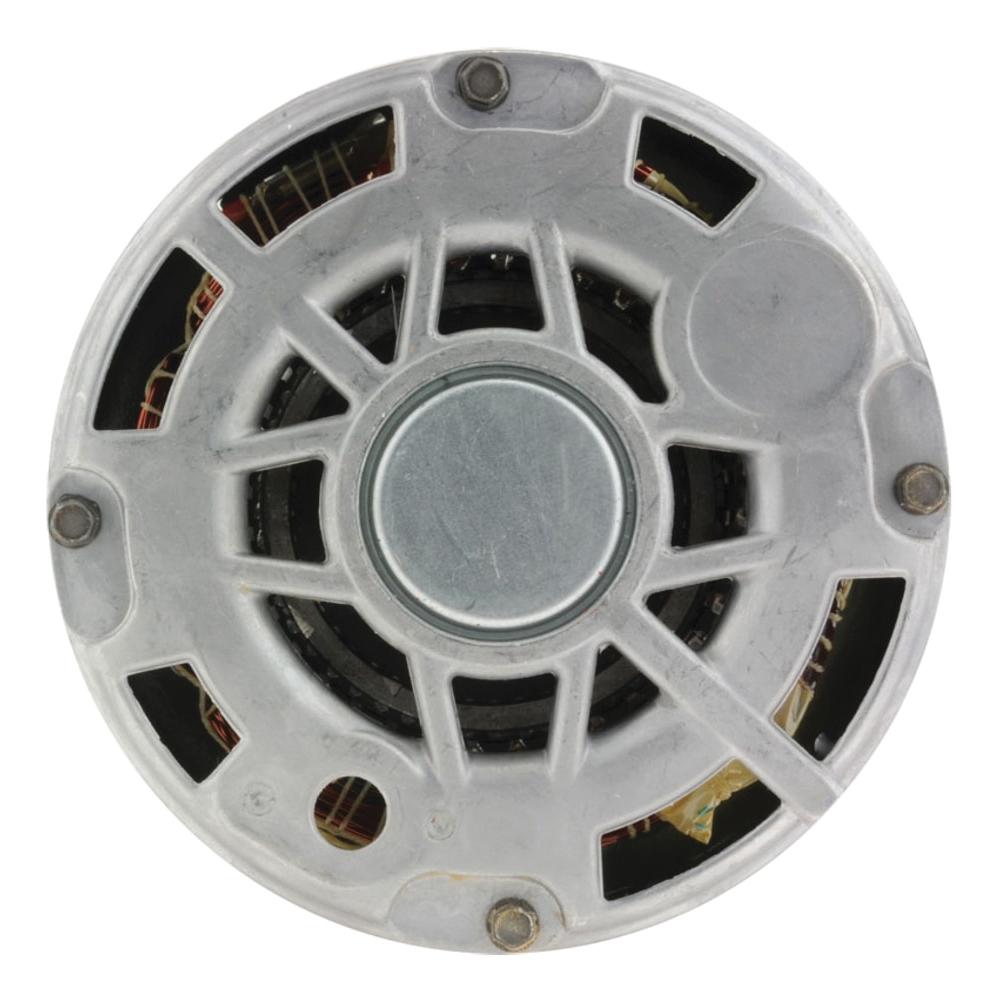

Rheem® 51-42534-01 Condenser Motor, 1/3 hp, 208/220/230 V, 50/60 Hz, 1 ph-Phase, 48 Frame, 1075 rpm Speed
Brand: Rheem®
Item No: 51-42534-01
Sign In for Availability
Description
Rheem® Condenser Motor, 1/3 hp HP Rating, 208/220/230 V, 3.9 A, 50/60 Hz, 1 ph, 1075 rpm Speed Rating, 1 Speed, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Ball Bearing, 5-5/8 in Overall Width, 9-15/16 in Overall Height, Additional Information: Clockwise/Counter-Clockwise Rotation, Direct Drive
Features
- OEM replacement for Rheem®, Ruud and WeatherKing® models
Specifications
|
Additional Information |
Clockwise/Counter-Clockwise Rotation, Direct Drive |
|
Amperage Rating |
3.9 A |
|
Bearing Type |
Ball |
|
Frame |
48 |
|
Frequency Rating |
50/60 Hz |
|
HP Rating |
1/3 hp |
|
Number of Speeds |
1 |
|
Overall Height |
9-15/16 in |
|
Overall Width |
5-5/8 in |
|
Phase |
1 ph |
|
Shaft Size |
1/2 in Dia x 4-1/2 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
208/220/230 V |
