Rheem® 51-42537-05

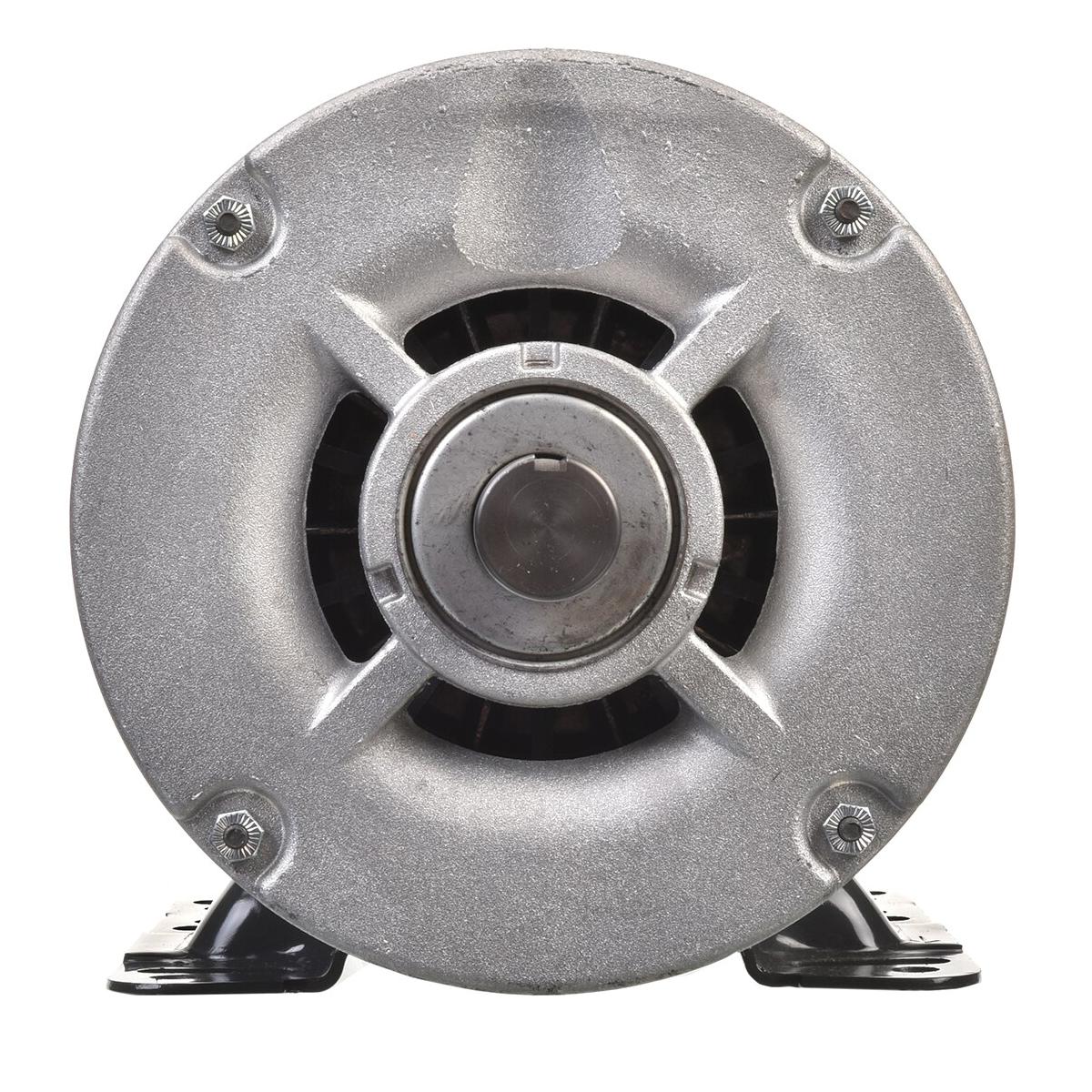

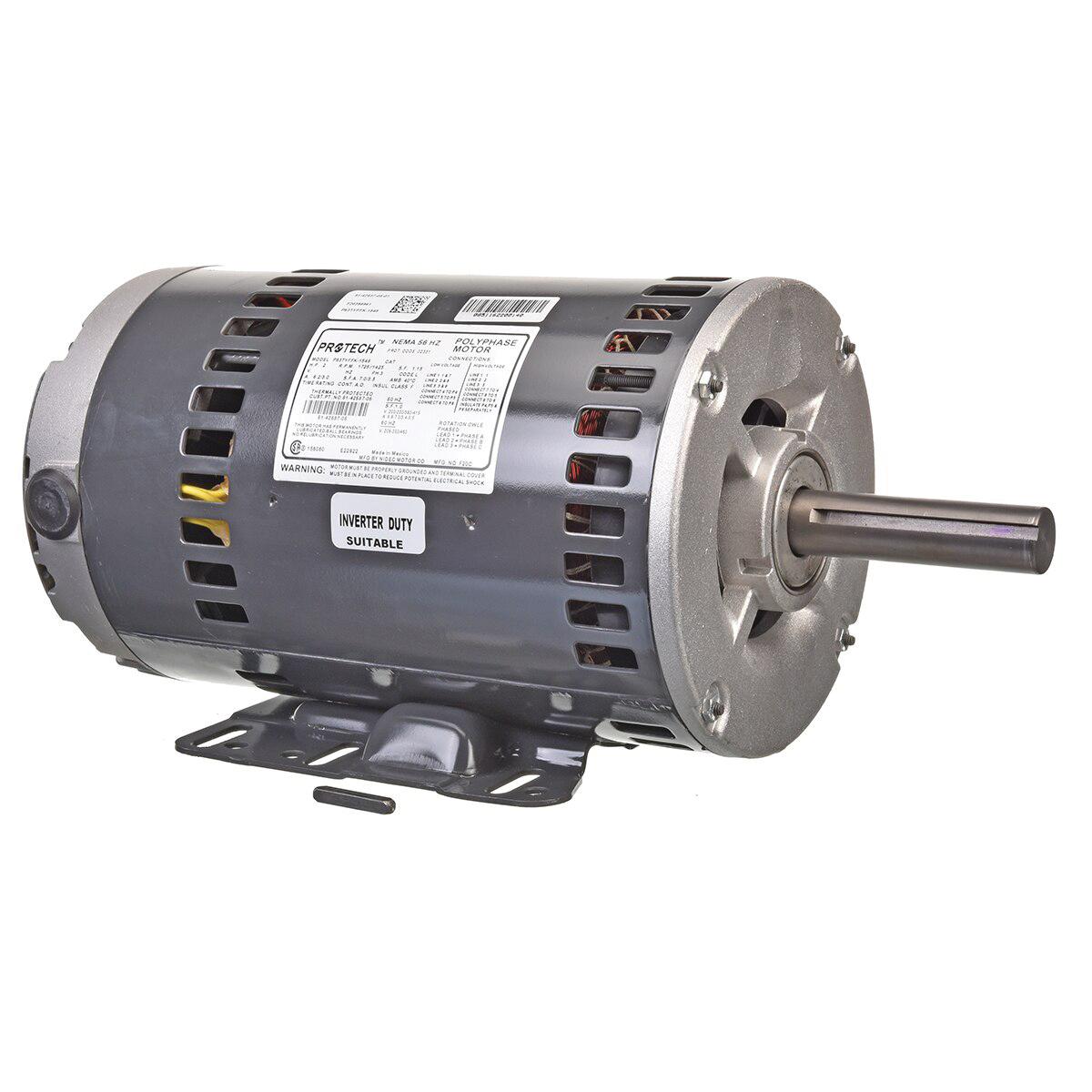

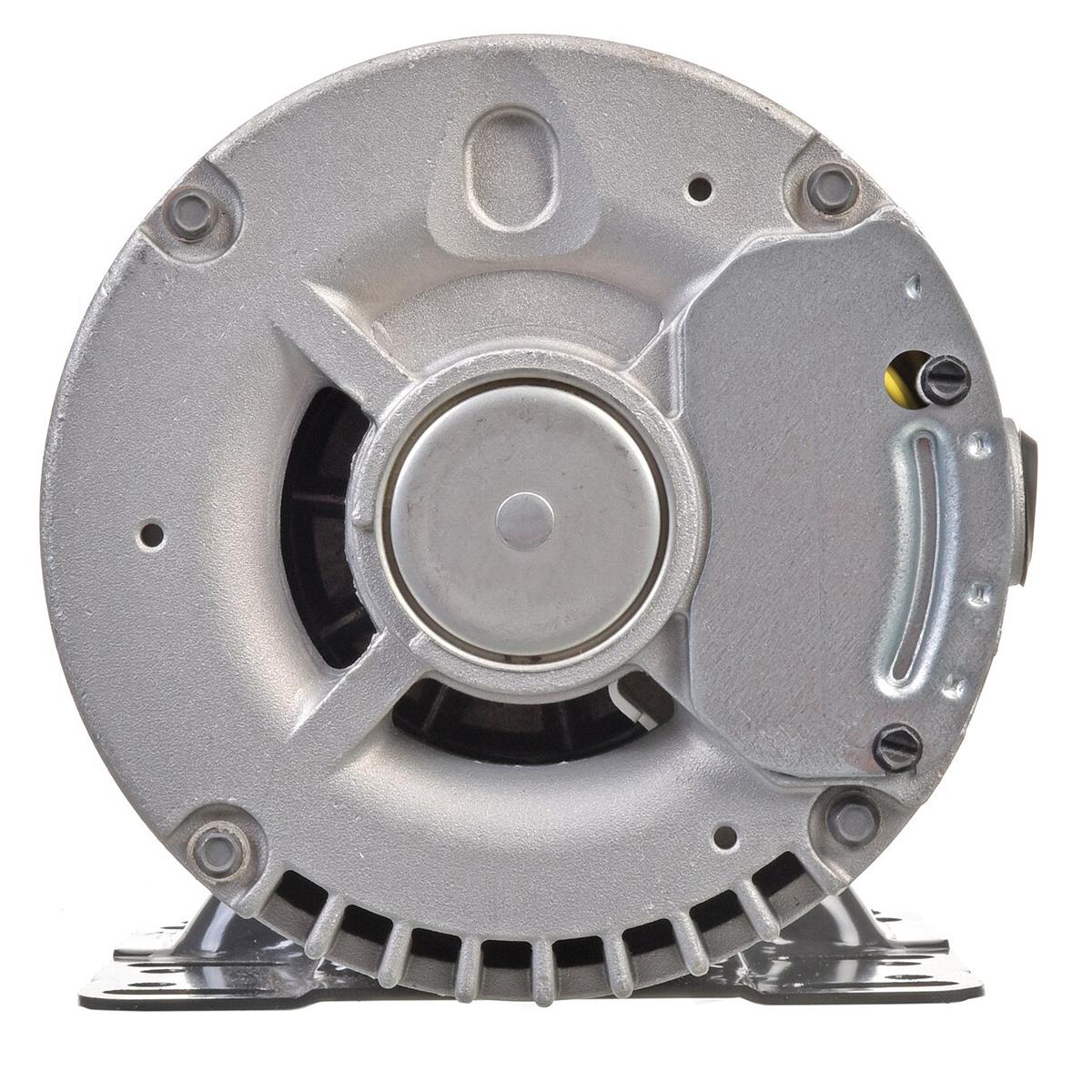

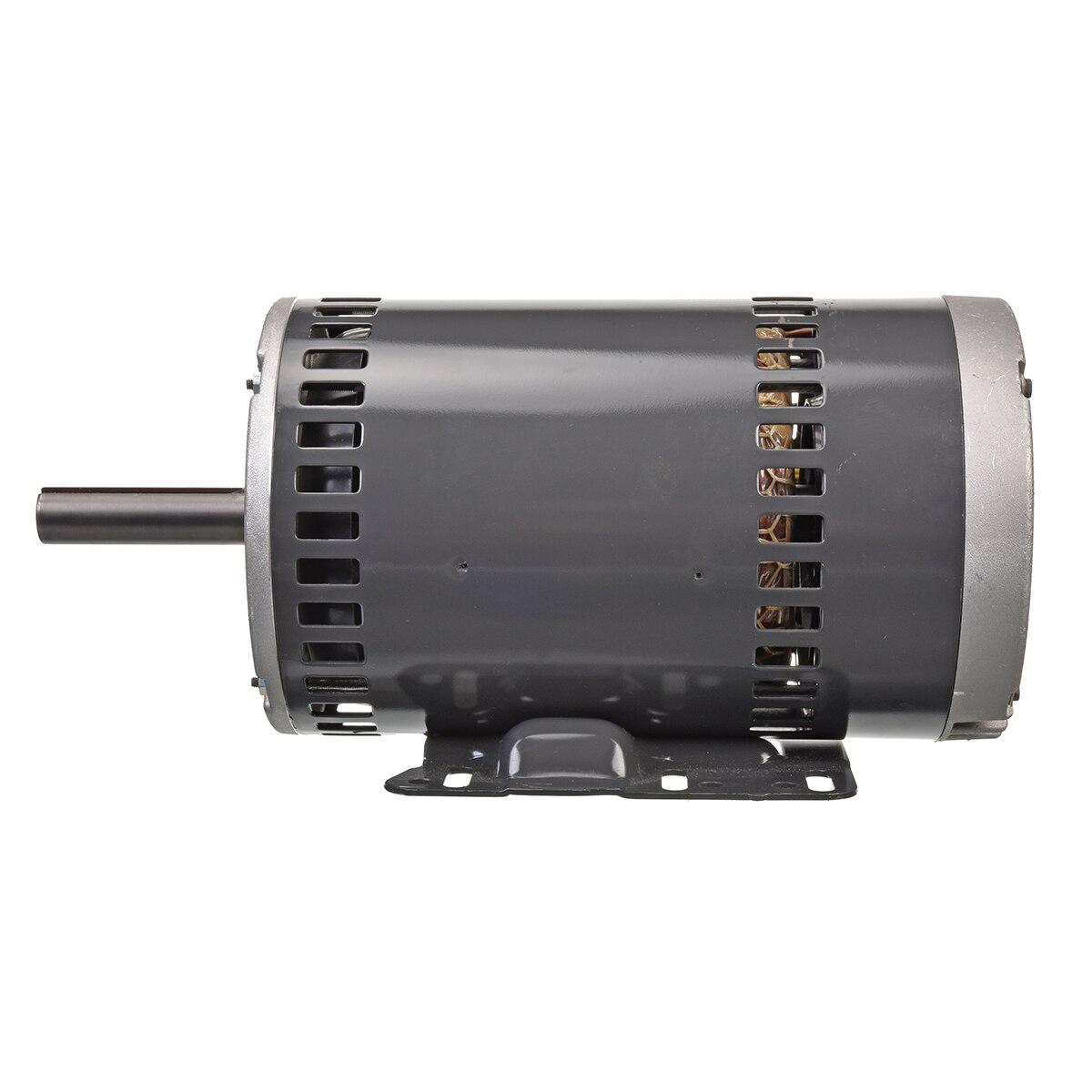

Rheem® 51-42537-05 Blower Motor, 2 hp, 208/220/230/380 to 415/460 V, 50/60 Hz, 3 ph, 56HZ Frame, 1725 rpm Speed
Brand: Rheem®
Item No: 51-42537-05
Sign In for Availability
Description
Rheem® Blower Motor, 2 hp, 208/220/230/380 to 415/460 V, 6.8/3.4 A, 50/60 Hz, 3 ph, 1725 rpm Speed, 1 Speed, Frame: 56HZ, 7/8 in Dia x 3-1/4 in L Shaft, Ball, Platform Mount, 6-1/2 in OAW, 14-1/2 in OAD, Clockwise Rotation, 11-1/4 in Motor Body Length
Specifications
|
Additional Information |
Clockwise Rotation, 11-1/4 in Motor Body Length |
|
Amperage Rating |
6.8/3.4 A |
|
Bearing Type |
Ball |
|
Frame |
56HZ |
|
Frequency Rating |
50/60 Hz |
|
HP Rating |
2 hp |
|
Mounting Type |
Platform |
|
Number of Speeds |
1 |
|
Overall Depth |
14-1/2 in |
|
Overall Width |
6-1/2 in |
|
Phase |
3 ph |
|
Shaft Size |
7/8 in Dia x 3-1/4 in L |
|
Speed Rating |
1725 rpm |
|
Voltage Rating |
208/220/230/380 to 415/460 V |
