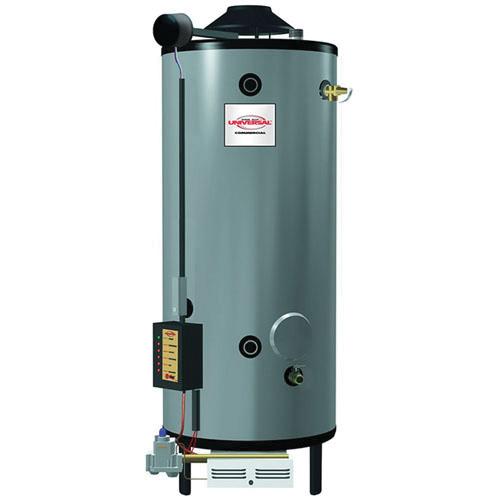

Rheem® G100-400A

Description

From installation through maintenance and technical support, Rheem®-RUUD® universal commercial gas water heaters are made to make replacement easier. And by saving you time and effort on each installation, they'll also help make your business more profitable.

Rheem® Heater, 100 gal Capacity, 458 gph First Hour Delivery, 969 gph Recovery Rate, 80 % Efficiency, 7 in Dia Vent, 120 V, 150 psi, LP Gas, Natural Gas Fuel, Direct Spark to Pilot Ignition System, 180 deg F, 30-1/4 in Dia x 76 in H

Features

• The tighter the commercial retrofit, the more you will appreciate how the Universal™ compact size and multiple water connections simplify installations
• The short heights and narrow jacket diameters, plus the top, front and rear water inlets/outlets offer the ultimate in installation flexibility
• System sentinel LED diagnostic system, with glowing LED lights, verifies system operation sequence by sequence
• Universal™ proprietary steel formulation, patented multi-flue design, combined with two-coats of porcelain enamel, results in a superior heat exchanger design
• Precision stainless steel burners, raised port design, are formed from high chromium stainless steel, each burner assembly slides out like a drawer for quick inspection and maintenance
• Low profile automatic flue damper minimizes overall product height
• Heavy-duty vent hood supports are designed to withstand the rigors of installation
• Full port, full flow drain valve factory installed brass drain valve allows for faster draining and servicing
• Energy saving ignition that ignites pilot only when there is a call for heat
• Easy side venting when combined with our AGA certified power vent kits
• Anode design utilizes multiple magnesium rods to ensure corrosion resistance for a long tank life
• Top, front and rear inlet and outlet connections
• Shorter floor-to-vent heights and smaller jacket diameters
• Hand hole cleanout for removal of sediment deposits
• Full port, full flow brass drain valve
