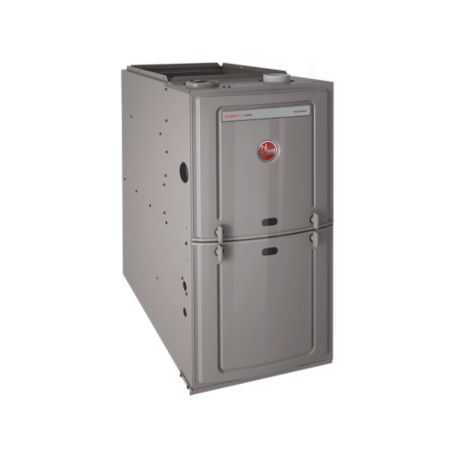

Rheem® R801CA050314MSA

Description

Rheem® Standard Gas Furnace, Series: R801CA Series, Model: Classic®, 50000 Btu/hr Input BTU Rating, 40000 Btu/hr Output BTU Rating, 115 V, 8 A, 1305 cfm Rating, 1/2 hp, 80 % AFUE Rating, 1-Phase, 60 Hz, 1 Stages, 3-Way Multi-Position, Horizontal, Upflow, NPT Connection, 1/2 in Connection, Liquid Propane, Natural Gas Fuel, 5 Speed, 6 mm W x 11 mm D Blower Size, 34 in H x 14 in W Cabinet Dimensions, CTEC Motor, Vent, Ducted or Ductless, 6 in Vent, 15 A Fuse Rating, 3 ton Tonnage, PlusOne® Ignition System, Direct Spark Ignition, 0.9 kPa, Steel, 25 to 55 deg F Temperature Rise

Features

• PlusOne™ diagnostics seven-segment LED all units
• PlusOne™ ignition system - DSI for reliability and longevity
• Heat exchanger is removable for improved serviceability
• Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability
• Solid doors provide quiet operation
• Low profile 34 in cabinet ideal for space constrained installations
• Blower shelf design - serviceable in all furnace orientations
• Hemmed edges on cabinets and doors
• Quarter-turn door knobs for tool less access
• Integrated control board features dip switches for easy system set-up
• QR code for quick access to product information from your smart phone or tablet
• Constant torque electrically commutated motor
