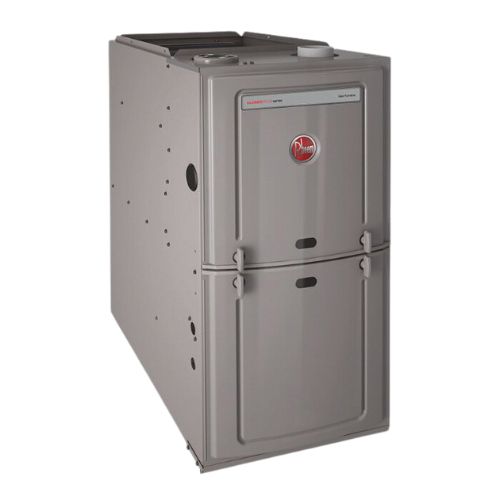

Rheem® R801CA050314ZSA
Rheem® ACHIEVER R801C R801CA050314ZSA 1st Design Standard Gas Furnace, 115 VAC, 1301 cfm, 1/2 hp, Downflow, Steel
Brand: Rheem®
Item No: R801CA050314ZSA
Sign In for Availability
Description
Rheem® 1st Design Standard Gas Furnace, Series: ACHIEVER R801C, 115 VAC, 9 amp, 1301 cfm Rating, HP Rating: 1/2 hp, 15 watt Wattage, 1 PH Phase, 60 Hz Frequency, Downflow Configuration, NPT Connection, 1/2 Inch Connection, Natural/Liquid Propane Gas Fuel, 5 Speed, 6 Inch Width x 11 Inch Depth Blower, Constant Torque ECM Motor, Vent, Ducted or Ductless: Vent, 6 Inch Vent, Up to 3 ton Tonnage, 40 VA Transformer Rating, PlusOne™ Ignition System, Direct Spark Ignition, 0.025 kPa Pressure, Filter Rack Mounting, Steel, Aluminized
Features
- 80% residential gas furnace CSA certified
- Plus One® diagnostics 7-segment LED all units
- Plus One® ignition system DSI for reliability and longevity
- Heat exchanger is removable for improved serviceability
- Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability
- Low profile 34 Inch cabinet ideal for space constrained installations
- Integrated control board features dip switches for easy system set-up
- QR code for quick access to product information from your smart phone or tablet
- Constant torque electrically commutated motor
- 20 years heat exchanger, 10 years conditional parts
Specifications
|
Amperage Rating |
9 A |
|
Blower Size |
6 in W x 11 in D |
|
CFM Rating |
1301 cfm |
|
Configuration |
Downflow |
|
Connection Size |
1/2 in |
|
Connection Type |
NPT |
|
Finish |
Aluminized |
|
Frequency Rating |
60 Hz |
|
Fuel Type |
Natural Gas, Liquid Propane Gas |
|
HP Rating |
1/2 hp |
|
Ignition System |
PlusOne™ |
|
Ignition Type |
Direct Spark |
|
Material |
Steel |
|
Motor Type |
Constant Torque ECM |
|
Mounting Type |
Filter Rack |
|
Number of Speeds |
5 |
|
Phase |
1 ph |
|
Pressure Rating |
0.025 kPa |
|
Series |
ACHIEVER R801C |
|
Tonnage |
Up to 3 ton |
|
Transformer Rating |
40 VA |
|
Vent Size |
6 in |
|
Vent, Ducted or Ductless |
Vented |
|
Voltage Rating |
115 VAC |
|
Wattage |
15 W |
