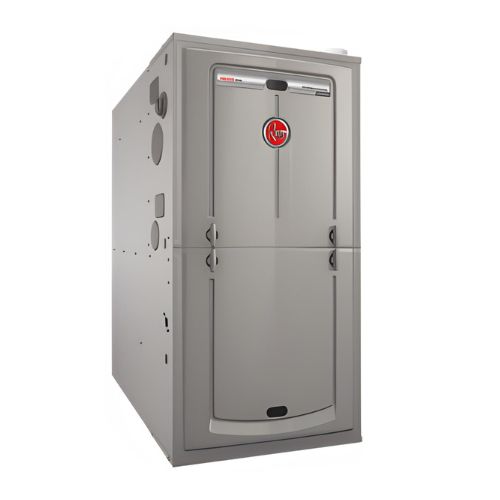

Rheem® R801CA125524ZSA
Rheem® Classic Series R801CA125524ZSA Gas Furnace, 115 V, 2000 cfm, 1 hp, 0.8 % AFUE, Down and Downflow Zero Clearance
Brand: Rheem®
Item No: R801CA125524ZSA
Sign In for Availability
Description
Rheem® Gas Furnace, Series Classic Series, Input BTU Rating: 125000 Btu/hr, Output BTU Rating: 100000 Btu/hr, 115 V, 15 A, 2000 cfm CFM, 1 hp, AFUE Rating: 0.8 %, 37 kW, 1 ph, 60 Hz, 1 -Stage, Configuration: Down and Downflow Zero Clearance, NPT Connection, 1/2 in Connection, Electric Fuel, Blower Size: 11 in D x 10 in W, Cabinet Dimensions: 34 in H x 24.5 in W x 29.59 in D, Cabinet Constant Torque Motor, Tonnage: 3.5 to 5 ton, Direct Spark Ignition, 0.05 kPa Pressure, Temperature Rise: 35 to 65 deg F
Features
- PlusOne® Diagnostics - industry first, seven segment LED for quick and easy service
- PlusOne® ignition system Direct Spark Ignition (DSI) for reliability and longevity
- Heat exchanger is removable for improved serviceability, aluminized steel construction provides maximum corrosion-resistance and thermal fatigue reliability
- Low profile, 34 in cabinet ideal for space constrained installations
- Integrated control boards feature DIP switches for easy system set up
- QR code for quick access to product information from your smart phone or tablet
- Constant torque electrically commutated motor
Specifications
|
AFUE Rating |
0.8 % |
|
Amperage Rating |
15 A |
|
Blower Size |
11 in D x 10 in W |
|
CFM Rating |
2000 cfm |
|
Cabinet Dimensions |
34 in H x 24.5 in W x 29.59 in D |
|
Configuration |
Down and Downflow Zero Clearance |
|
Connection Size |
1/2 in |
|
Connection Type |
NPT |
|
Frequency Rating |
60 Hz |
|
Fuel Type |
Electric |
|
HP Rating |
1 hp |
|
Ignition Type |
Direct Spark |
|
Input BTU Rating |
125000 Btu/hr |
|
Material |
Aluminized Steel |
|
Model |
R801C |
|
Motor Type |
Cabinet Constant Torque |
|
Number of Stages |
1 |
|
Output BTU Rating |
100000 Btu/hr |
|
Phase |
1 ph |
|
Pressure Rating |
0.05 kPa |
|
Series |
Classic Series |
|
Temperature Rise |
35 to 65 deg F |
|
Tonnage |
3.5 to 5 ton |
|
Voltage Rating |
115 V |
|
Wattage |
37 kW |
