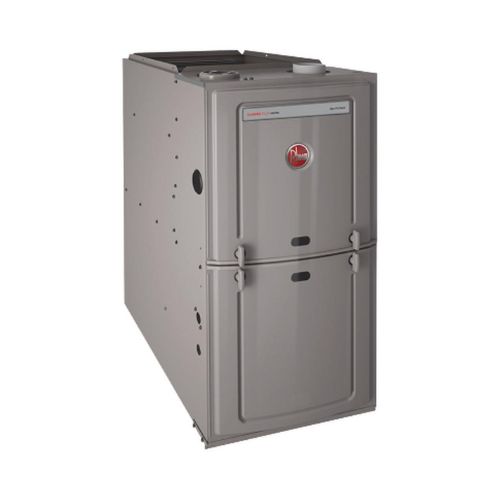

Rheem® R801CB075317ZSA

Description

Rheem® 2nd Design Standard Gas Furnace, Series: ACHIEVER R801C, 115 VAC, 9 amp, 1200 cfm Rating, HP Rating: 1/2 hp, 22 watt Wattage, 1 PH Phase, 60 Hz Frequency, Downflow Configuration, NPT Connection, 1/2 Inch Connection, Natural/Liquid Propane Gas Fuel, 5 Speed, 7 Inch Width x 11 Inch Depth Blower, Constant Torque ECM Motor, Vent, Ducted or Ductless: Vent, 6 Inch Vent, Up to 3 ton Tonnage, 40 VA Transformer Rating, PlusOne™ Ignition System, Direct Spark Ignition, 0.029 kPa Pressure, Filter Rack Mounting, Steel, Aluminized

Features

• 80% residential gas furnace CSA certified
• Plus One® diagnostics 7-segment LED all units
• Plus One® ignition system DSI for reliability and longevity
• Heat exchanger is removable for improved serviceability
• Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability
• Low profile 34 Inch cabinet ideal for space constrained installations
• Integrated control board features dip switches for easy system set-up
• QR code for quick access to product information from your smart phone or tablet
• Constant torque electrically commutated motor
• 20 years heat exchanger, 10 years conditional parts

Specifications

Documentation
