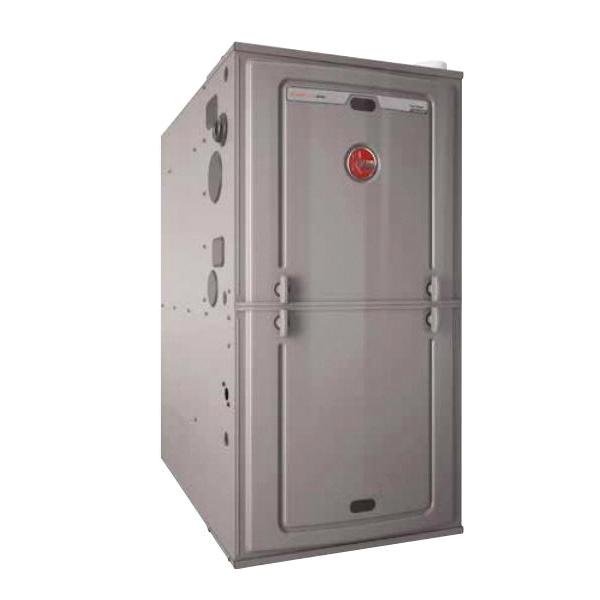

Rheem® R802V0754A17UHSCAP

Description

Rheem® Endeavor™ Line Gas Furnace, Series: R802V Series, Model: Classic Plus®, 75000 Btu/hr Input BTU Rating, 60000 Btu/hr Output BTU Rating, 115 V, 13 A, 1450 cfm Rating, 3/4 hp, 80 % AFUE Rating, 1-Phase, 60 Hz, 2 Stages, Horizontal, Upflow, NPT Connection, 1/2 in Connection, 7 mm W x 11 mm D Blower Size, 34 in H x 17-1/2 in W Cabinet Dimensions, ECM Motor, Vent, Ducted or Ductless, 6 in Vent, 20 A Fuse Rating, 4 ton Tonnage, PlusOne® Ignition System, Direct Spark Ignition, 1 kPa, 25 to 55 deg F Temperature Rise

Features

• PlusOne™ diagnostics: with the Rheem® contractor and EcoNet® Apps, built-in EcoNet® and Bluetooth technology makes monitoring, trouble shooting and repairing the product easier than ever before
• Dip switch-free installation commissioning via Bluetooth technology: seamless final install step without DIP switch configuration using the Rheem® contractor app
• PlusOne™ ignition system - proven direct spark ignition (DSI) for reliability and longevity
• Two-stages heating: furnace operation mainly stays at low capacity around 60 to 65%, but will switch to high capacity to deliver stable heat distribution
• Constant cfm motor: truly variable speed technology allows for ultimate humidity control, quieter sound levels and year round energy savings
• Quieter operation: a fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace one-of the quieter options available
• EcoNet® enabled furnace: the latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy saving
• Allows on the-go control and receipt of system alerts by the homeowner via the EcoNet® smart thermostat and EcoNet® App
