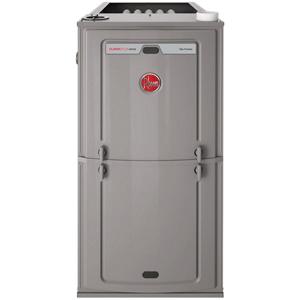

Rheem® R95TC0701317MSA

Description

Rheem® Classic Plus Gas Furnace, Series: R95T, 70000 Btu/hr Input BTU Rating, 115 VAC, 6.8 A, 1198 cu-ft/min Cooling, 1113 cu-ft/min Heating, 1/2 hp, 95% AFUE, 1 -Phase, 60 Hz, Configuration: Multi-Position, 1/2 in NPT Connection, Natural Gas, LPG Fuel, 5 -Speed, 8 in W x 11 in Dia Blower Size, 17-1/2 in W x 34 in H x 28.8 in D Cabinet Dimensions, Up to 3 ton, Direct Spark Ignition Ignition, Gray, 40 - 70 deg F Rise

Features

• Four-way multi-poise design, 17-1/2 in W cabinet
• PlusOne™ diagnostics 7-segment LED all units
• PlusOne ignition system - DSI for reliability and longevity, PlusOne water management system with patented blocked drain sensor
• Heat exchanger is removable for improved serviceability, aluminized steel primary and stainless steel secondary construction provide maximum corrosion-resistance and thermal fatigue reliability
• Low profile 34 in cabinet ideal for space constrained installations
• Blower shelf design - serviceable in all furnace orientations
• Pre marked hoses insures proper system drainage
• Replaceable collector box
• Hemmed edges on cabinets and doors
• Quarter turn fasteners for tool less access
• Integrated control boards feature dip switches for easy system set up
• Self priming condensate trap
• Solid bottom included
• With X13 motor
