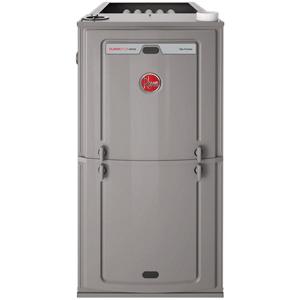

Rheem® R95TC0851521MSA

Rheem® Classic Plus R95T R95TC0851521MSA Gas Furnace, 84000 Btu/hr Input BTU, 115 VAC, 1 hp, 95% AFUE, Multi-Position

Brand: Rheem®

Item No: R95TC0851521MSA

Sign In for Availability
loading

Description

Rheem® Classic Plus Gas Furnace, Series: R95T, 84000 Btu/hr Input BTU Rating, 115 VAC, 8.3 A, 1 hp, 95% AFUE, 1 -Phase, 60 Hz, Configuration: Multi-Position, 1/2 in NPT Connection, Natural Gas, LPG Fuel, 21 in W x 34 in H x 28.8 in D Cabinet Dimensions, Up to 5 ton, Direct Spark Ignition Ignition, Gray

Features

  • Four-way multi-poise design, 21 in W cabinet
  • PlusOne™ diagnostics 7-segment LED all units
  • PlusOne ignition system - DSI for reliability and longevity, PlusOne water management system with patented blocked drain sensor
  • Heat exchanger is removable for improved serviceability, aluminized steel primary and stainless steel secondary construction provide maximum corrosion-resistance and thermal fatigue reliability
  • Low profile 34 in cabinet ideal for space constrained installations
  • Blower shelf design - serviceable in all furnace orientations
  • Pre marked hoses insures proper system drainage
  • Replaceable collector box
  • Hemmed edges on cabinets and doors
  • Quarter turn fasteners for tool less access
  • Integrated control boards feature dip switches for easy system set up
  • Self priming condensate trap
  • Solid bottom included
  • With X13 motor

Specifications

AFUE Rating

95%

Amperage Rating

8.3 A

Cabinet Dimensions

21 in W x 34 in H x 28.8 in D

Color

Gray

Configuration

Multi-Position

Connection Type

1/2 in NPT

Frequency Rating

60 Hz

Fuel Type

Natural Gas, LPG

HP Rating

1 hp

Ignition Type

Direct Spark Ignition

Input BTU Rating

84000 Btu/hr

Phase

1

Series

R95T

Tonnage

Up to 5 ton

Voltage Rating

115 VAC

Documentation

Specification Sheet

https://assets.unilogcorp.com/267/ITEM/DOC/Rheem_R95TC1001521MSA_Specification_Sheet.pdf
