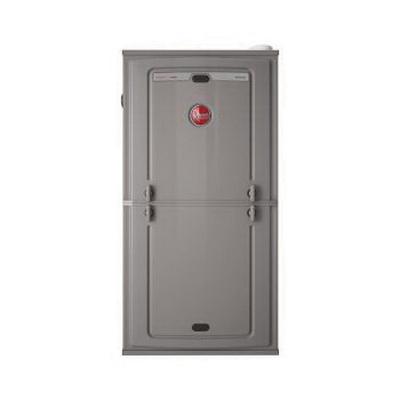

Rheem® R96PA0402317MSA

Description

Rheem® Gas Furnace, Series: Classic, R96P Model, 42000 Btu/hr Input BTU Rating, 115 VAC, 6 A, 1121 cu-ft/min Cooling, 1049 cu-ft/min Heating, 1/4 hp, 96% AFUE, 1 -Phase, 60 Hz, Configuration: Multi-Position, 1/2 in NPT Connection, Natural Gas, LPG Fuel, 7 in W x 11 in Dia Blower Size, 17-1/2 in W x 34 in H x 29-5/8 in D Cabinet Dimensions, PSC Motor, Up to 3 ton, Electric Ignition, Gray, 11 - 28 deg C Rise

Features

• Four way multi-poise design
• Heat exchanger is removable for improved serviceability, aluminized steel primary and stainless steel secondary construction provide maximum corrosion-resistance and thermal fatigue reliability
• Low profile 34 in cabinet ideal for space constrained installations
• Blower shelf design - serviceable in all furnace orientations
• Pre marked hoses insures proper system drainage
• Vent with 2 in or 3 in PVC
• Hemmed edges on cabinets and doors
• Quarter turn fasteners for tool less access
• Integrated control boards feature dip switches for easy system set up
• Self priming condensate trap
• Manual shut-off valve
• 100% safety lock out, cool fan off delay
• Field selectable heat fan off delay, one hr automatic retry, power and self-test diagnostics, flame sense current diagnostics, electronic air cleaner connections
• PlusOne ignition system - DSI igniter
