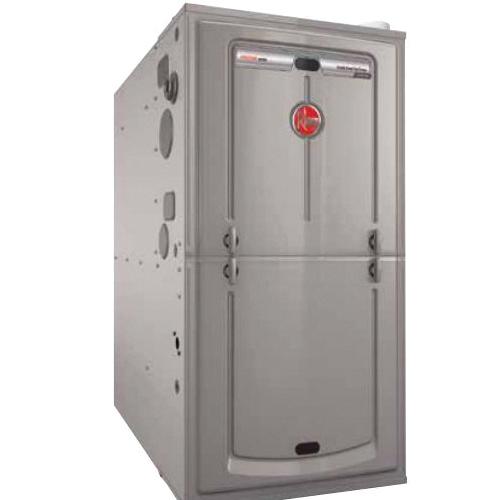

Rheem® R97MV0703A17DHSGAP

Description

Rheem® Endeavor™ Line Standard Gas Furnace, Series: R97MV Series, Model: Prestige®, 70000 Btu/hr Input BTU Rating, 69000 Btu/hr Output BTU Rating, 115 V, 10 A, 1109 cfm Rating, 1/2 hp, 97 % AFUE Rating, 1-Phase, 60 Hz, Downflow, Horizontal, NPT Connection, 1/2 in Connection, 8 mm W x 11 mm D Blower Size, 34 in H x 17-1/2 in W Cabinet Dimensions, ECM Motor, 15 A Fuse Rating, 3 ton Tonnage, PlusOne® Ignition System, Direct Spark Ignition, 1 kPa, Steel/Stainless Steel, 40 to 70 deg F Temperature Rise

Features

• PlusOne™ diagnostics - industry first, seven-segment LED display makes service calls quick and easy
• PlusOne™ ignition system - proven direct spark ignition (DSI) for reliability and longevity
• PlusOne™ water management system: exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code
• Modulating heating stage: gradual auto-adjustment from low to 100% of capacity to meet precise comfort requirements
• Constant cfm motor: truly variable speed technology allows for ultimate humidity control, quieter sound levels and year round energy savings
• Quietest operation: a fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace of the quietest available
• EcoNet® enabled furnace: the latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy saving
• Allows on the-go control and receipt of system alerts by the homeowner via the EcoNet® smart thermostat and EcoNet® App
• PlusOne™ energy efficiency: ENERGY STAR® certified, featuring 97% AFUE across all model sizes
