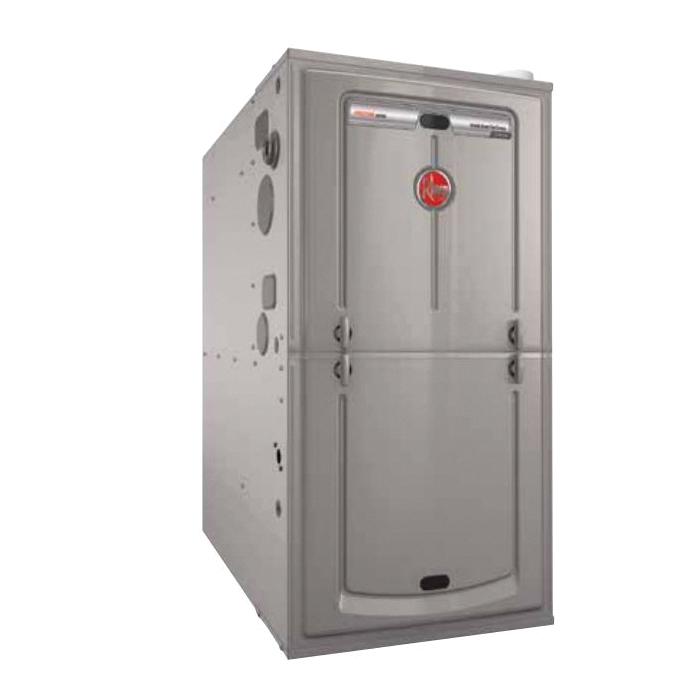

Rheem® R98MV1005A21UPSGAP

Description

The EcoNet® Enabled Rheem® Endeavor™ Line Prestige® Series R98MV is ENERGY STAR certified, offering one of the highest efficiencies available today. Monthly utility bills go down while you stay consistently comfortable.

Rheem® Gas Furnace, Series: Endeavor™ Line Prestige® Series, Model: R98MV, 100000 Btu/hr Input BTU Rating, 97000 Btu/hr Output BTU Rating, 115 V, 13 A, 1750 cfm Cooling, 1644 cfm Heating CFM Rating, 3/4 hp Rating, 98 % AFUE, 559 W, 1 ph, 60 Hz, Upflow Configuration, NPT Connection Type, 1/2 in Connection, Natural, Propane Gas, 10 in W x 11 in D Blower Size, 34 in H x 21 in W x 29.63 in D Cabinet Dimensions, Constant CFM, Variable Speed ECM Motor, Vent, Ducted or Ductless, 20 A Fuse, 5 ton Tonnage, PlusOne™ Ignition, Direct Spark Ignition, 1 in-WC, 40 to 70 deg F Rise, Additional Information: Modulating Heating Stage

Features

• PlusOne™ diagnostics - industry first, seven-segment LED for quick and easy service
• Proven direct spark ignition (DSI) for reliability and longevity
• Rheem®-exclusive patented block drain sensor that automatically shuts-off the furnace when the drain is blocked and alerts the contractor via diagnostic code
• Gradual auto-adjustment from low to 100% of capacity to meet precise comfort requirements
• Truly variable speed technology allows for ultimate humidity control, quieter sound levels and year round energy savings
• A fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace of the quietest available
• The latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy saving
• Allows on the-go control and receipt of system alerts by the homeowner via the EcoNet® smart thermostat and EcoNet® App
