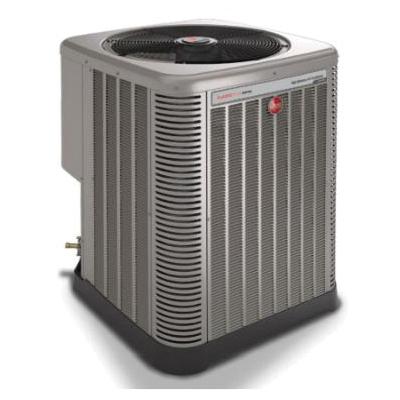

Rheem® RA16AZ60AJ3CA
Rheem® Endeavor™ Line Classic Plus® RA16AZ iM Series RA16AZ60AJ3CA Air Conditioner, 208/230 V, 60000 Btu/hr
Brand: Rheem®
Item No: RA16AZ60AJ3CA
Sign In for Availability
Description
Rheem® Endeavor™ Line Classic Plus® Air Conditioner, Series: RA16AZ iM Series, 2 to 5 ton Nominal Capacity, 60000 Btu/hr, 208/230 V, 60 Hz, 1 ph, 10 EER, 16 SEER, 3 Stage, R-410A, 31 in H x 35-3/4 in W x 35-3/4 in D
Features
- EcoNet® enabled: automatic system configuration and optimization
- Advanced setup, monitoring and troubleshooting
- Up to 62% faster overall diagnostics over other residential HVAC brands
- Up to 54% faster installation over other residential HVAC brands
- Operation from 40 to 100% capacity with EcoNet® smart thermostat
- Three speed operation when installed with a 24 V two-stage thermostat
- Precise temperature control, advanced humidity control and quieter operation
- Brushless DC condenser motors (BLDC): enhances reliability and allows for easier serviceability
- Swept wing fan technology: features quieter operation and improved unit acoustics
- 7 mm condenser copper coil: requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
- PlusOne™ triple service access: enables up to 93% faster coil cleaning over other residential HVAC brands
Specifications
|
BTU Rating |
60000 Btu/hr |
|
Dimensions |
31 in H x 35-3/4 in W x 35-3/4 in D |
|
EER Rating |
10 |
|
Frequency Rating |
60 Hz |
|
Nominal Capacity |
2 to 5 ton |
|
Number of Stages |
3 |
|
Phase |
1 ph |
|
Refrigerant Type |
R-410A |
|
SEER Rating |
16 |
|
Series |
RA16AZ iM Series |
|
Voltage Rating |
208/230 V |
