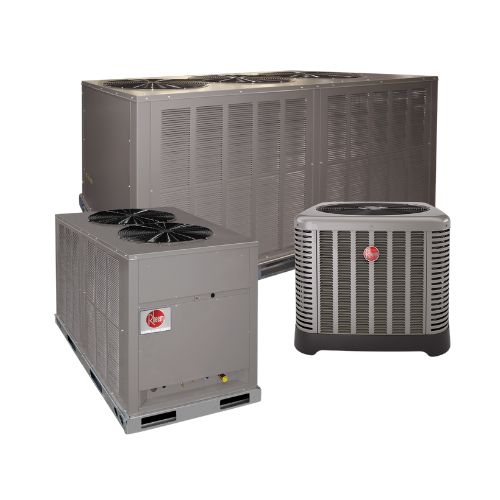

Rheem® RACL2240DAZ

Description

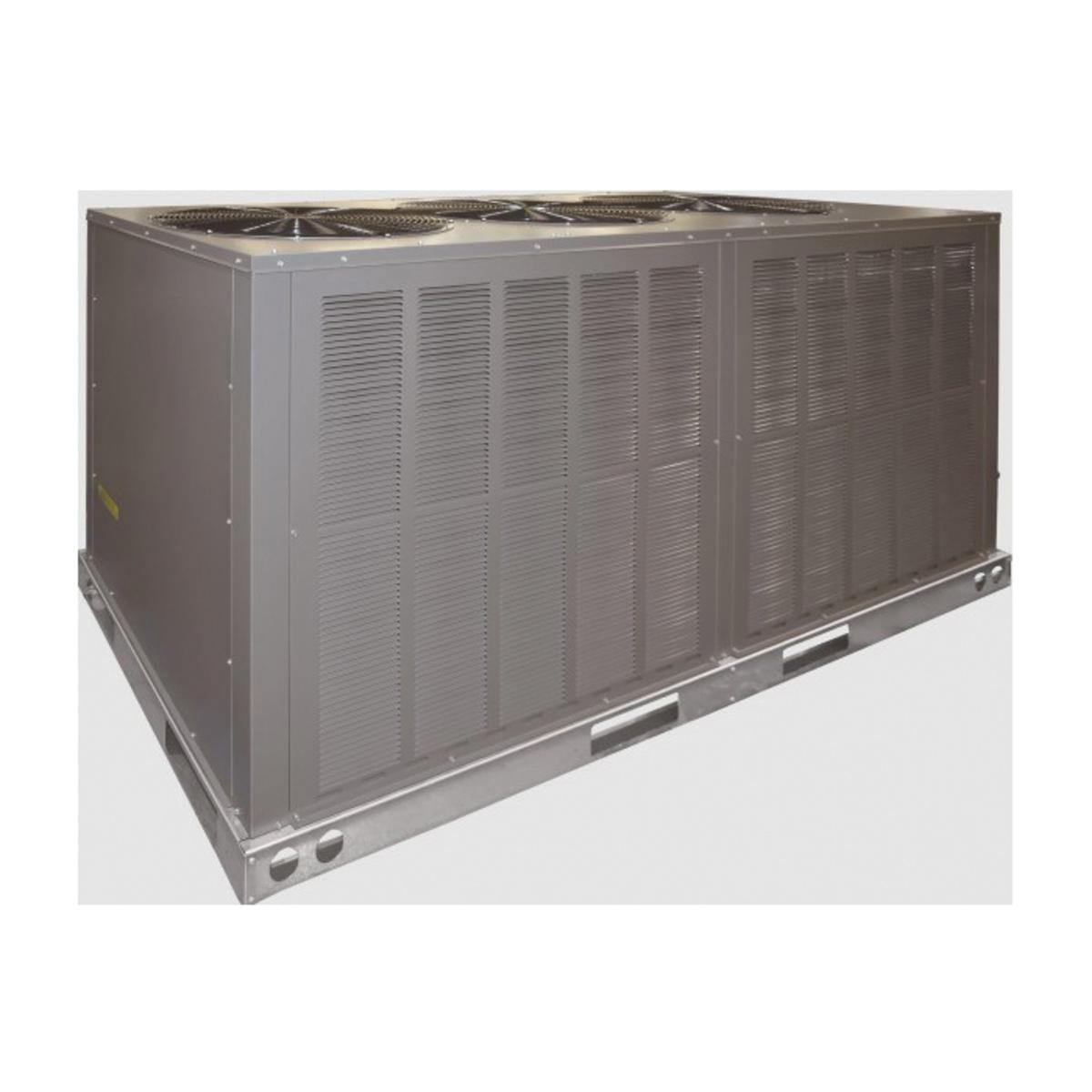

Rheem® Achiever® Remote Condensing Unit, Series: RACL Series, 460 V, 32.1 A, 70.3 kW, 60 Hz, 3 ph, Scroll Compressor, 12000 cfm CFM Rating, 60 to 70 A Fuse, 40.38 sq-ft Face Area, 550 psig, 75 to 125 deg F, Steel, Galvanized, 83-7/8 in L x 38-3/8 in W x 44-3/4 in H

Features

• Cabinet, all access panels can be opened or removed without affecting the structural strength of the unit, stamped louvered panels offer 100% protection for the condenser coil
• Equipment ground lug for field connection of ground wire
• Contactor is an electrical switch which operates the compressor and outdoor fans, its 24 V coil is activated on a call for cooling or heating
• Transformer 75 VA step down type, from line to 24 V with resettable circuit breaker
• Auto-reset high-pressure control and auto-reset low-pressure control to provide compressor protection under abnormally high-head pressure conditions (outdoor fan failure, restriction, dirty coil and more) or abnormally low suction pressure conditions (restrictions, TEV failure, loss of charge, indoor blower failure and more) while eliminating nuisance tripping sometimes experienced with conventional control systems
• Coil is constructed with copper tubes and aluminum fins mechanically bonded to tubes for maximum heat transfer capabilities, all coil assemblies are leak tested up to 550 psig internal pressure
• Service access control box with separate line and control voltages, as well as compressor and other refrigerant controls are accessible through access panels, an electrical access cover may be opened or removed without affecting normal operation of the unit, condenser fan motors are equipped with molded plugs for easy removal, louver panels and end access panel can be removed for coil cleaning
• Base pan, galvanized steel with weather-resistant baked enamel finish
• Scroll compressor is hermetically sealed with internal high-temperature protection and durable insulation on motor windings, the entire compressor is mounted on rubber grommets to reduce vibration and noise
• Suction line accumulator to prevent liquid slugging of compressor
• Refrigerant connections-all field sweat joints are made external of the unit and are located close to the ground for a neat looking installation
• Service valves standard on liquid line and vapor line
