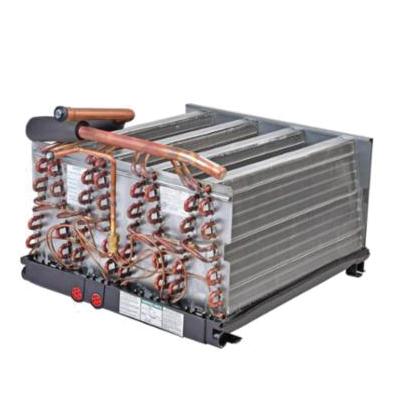

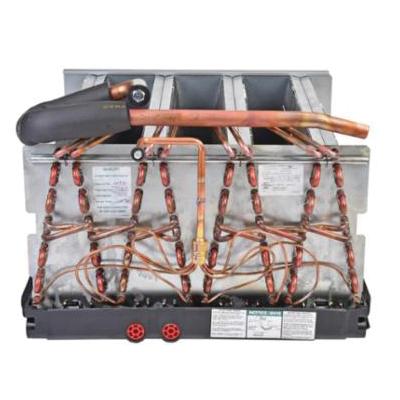

Rheem® RCBA-4882T

Description

Rheem Value Series indoor coils are designed for use with Rheem Value Series outdoor units in up flow, down flow and horizontal configurations. The MultiFlex® coils provide nominal capacities ranging from 18000 to 60000 Btu/hr. The patented single-row, single-coil pleated concept results in extremely low pressure drops and corresponding easy cleaning. Drain connections may be made from either side of the coil.

Rheem® Multiflex® Universal Replacement Indoor Evaporator Coil, Series: RCBA Value Series, 3.5 to 4 ton Nominal Capacity, 42000 to 48000 Btu/hr, Horizontal, Uncased, Upflow/Downflow, 1400 to 1600 cfm CFM Rating, 10 SEER, 3.5 to 4 ton, R-410A, Flowcheck Standard Coil, 3/8 in, 3/4 in, Sweat x FNPT, 1 Rows, 8 Number of Slabs, 10.13 sq-ft Face Area, 82 in Orifice, 18 in, Copper, Tin-Plated, 13-25/32 in H x 19-1/4 in W, Additional Information: Flowcheck Piston Metering Device

Features

• Constructed of enhanced aluminum fins bonded to inner grooved copper tubing
• Coils have sweat fitting refrigerant connections
• Primary condensate drain connections are 3/4 in FNPT
• Coils are ARI certified for system application with a wide variety of Rheem Value Series outdoor units
• Condensate drain pan is constructed of a high-grade, heat-resistant, corrosion-free polymer material
