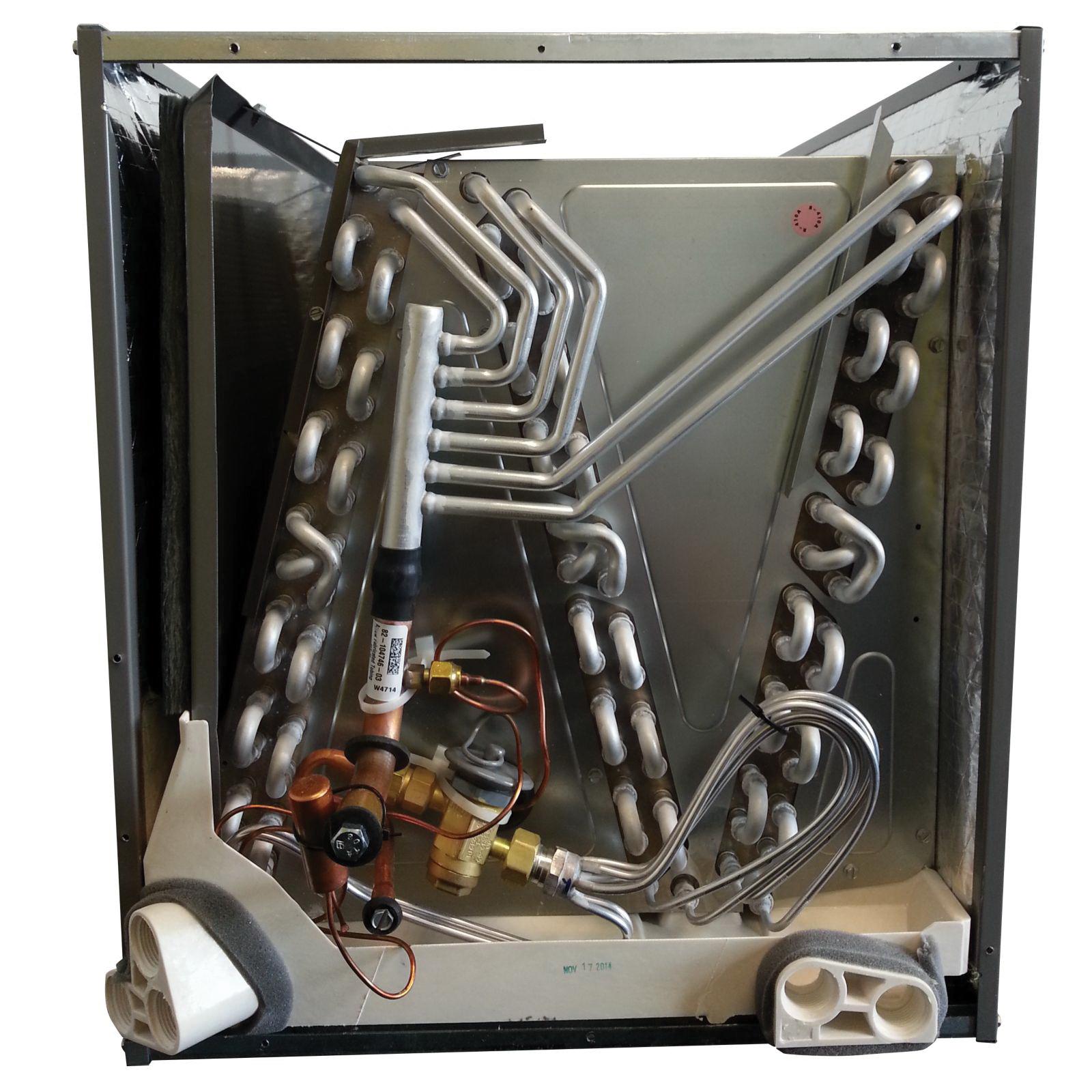

Rheem® RCF3621MEAMCA

Description

Rheem® Evaporator Coil, Series: RCF Series, 36000 Btu/hr, Multi-Position, 700 to 1300 cfm CFM Rating, 3 ton, R-410A, Cased N Coil, 3/8 in, 3/4 in, Sweat, 2 Rows, 8.55 sq-ft Face Area, 16 in, Aluminum, Gray, 28 in H x 21 in W x 21-11/16 in D

Features

• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Coils are tested at the factory with an extensive refrigerant leak check
• Coils have copper sweat refrigerant connections
• Feature two sets of 3/4 in NPT condensate drain connections for ease of connection
• Chatleff metering device connections, at inlet and outlet and equalizer connections
• Approved for system application with variety of Rheem® outdoor units
• Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal-setting material
• Compatible with germicidal light system
• Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right
• Unique drain pan design maximizes application flexibility and condensate removal
• N-coil design maximizes performance and minimizes height required at installation
• Mid efficiency
• Major series feature set change, performance change
• Minor Series, component change, cost reduction, non-performance changes
