Rheem® RCF6024STAVUA

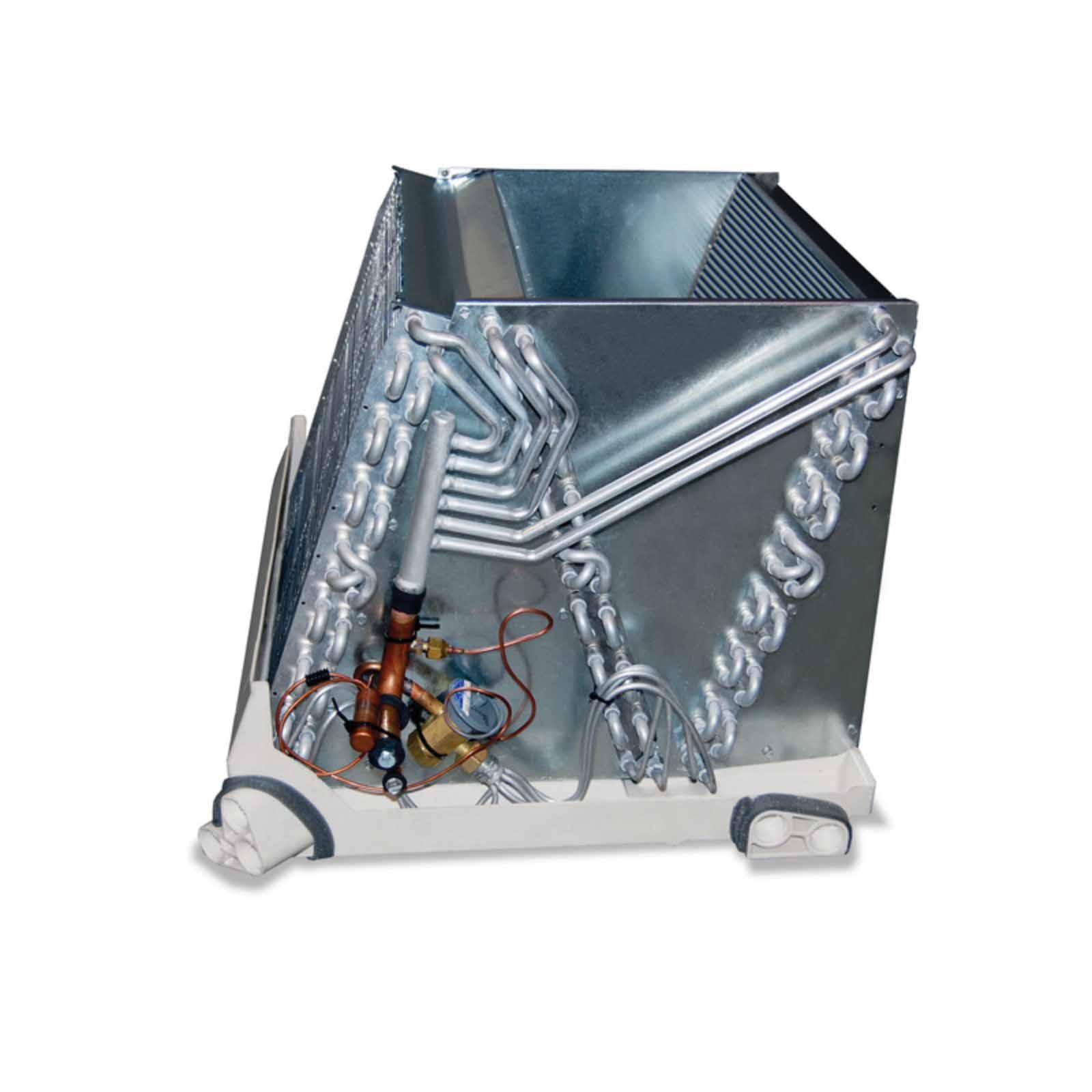

Rheem® RCF Series RCF6024STAVUA Evaporator Coil, Uncased N Coil, 5 ton, 60000 Btu/hr, Aluminum

Brand: Rheem®

Item No: RCF6024STAVUA

Sign In for Availability
loading

Description

Rheem® Evaporator Coil, Series: RCF Series, 60000 Btu/hr, Convertible, Vertical, 5 ton, R-410A, Uncased N Coil, 3/8 in, 3/4 in, Sweat, Aluminum, Gray, 30-15/16 in H x 24-1/2 in W x 21-3/8 in D

Features

  • Constructed of aluminum fins bonded to internally grooved aluminum tubing
  • Coils are tested at the factory with an extensive refrigerant leak check
  • Coils have copper sweat refrigerant connections
  • Feature two sets of 3/4 in NPT condensate drain connections for ease of connection
  • Chatleff metering device connections, at inlet and outlet and equalizer connections
  • Approved for system application with variety of Rheem® outdoor units
  • Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal-setting material
  • Compatible with germicidal light system
  • Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right
  • Unique drain pan design maximizes application flexibility and condensate removal
  • N-coil design maximizes performance and minimizes height required at installation
  • Standard efficiency
  • Major series feature set change, performance change
  • Minor Series, component change, cost reduction, non-performance changes

Specifications

BTU Rating

60000 Btu/hr

Coil Type

Uncased N

Color

Gray

Configuration

Convertible, Vertical

Connection Size

3/8 in, 3/4 in

Connection Type

Sweat

Dimensions

30-15/16 in H x 24-1/2 in W x 21-3/8 in D

Material

Aluminum

Refrigerant Type

R-410A

Series

RCF Series

Tonnage

5 ton

Documentation

Instruction/Installation Manual

https://assets.unilogcorp.com/267/ITEM/DOC/Rheem_RCF2414STAMCA_Manual.pdf

Specification Sheet

https://assets.unilogcorp.com/267/ITEM/DOC/Rheem_RCF3617STAMCA_Specification_Sheet.pdf
