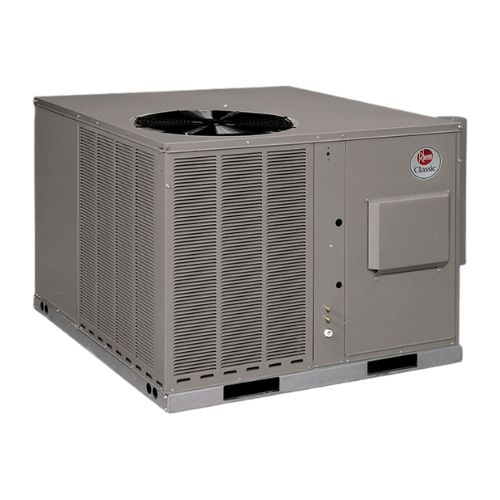

Rheem® RGEAZR060AJT101NAAJA

Description

Rheem® Standard iR Gas/Electric Package Unit, Series RGEAZR Series, Model: 060AJT101/X, Input BTU Rating: 60000 Btu/hr Cooling, 100000 Btu Heating, Output BTU Rating: 81000 Btu Heating, 208/230 V, 41 A Minimum Circuit, 2.3 A Full Load Condenser Motor, 8.9 A Full Load Evaporator Fan, 5.16 kW, 1 hp Indoor Fan, 1/2 hp Outdoor Fan, 1050 rpm, 60 Hz, 1 ph, Compressor Type: Scroll, 2000/1700 cfm CFM, 10.6 EER, 13.4 SEER Rating, AFUE Rating: 81 %, Tonnage: 5 ton, Number of Burners: 5, 1 Heat -Stage, R-410A, Decibel Rating: 77 dB, Roof Curb Mount, Vent, Ducted or Ductless: Ducted, Direct Spark Ignition, Constant Torque Drive, Blower Size: 12 in D x 9 in W in, Coil Rating: 3.96 sq-ft Face Area Indoor, 15.37 sq-ft Face Area Outdoor, 1/2 in Gas Connection, Drain Connection: 3/4 in NPT, Filter Size: (1) 1 x 24 x 24 in, Steady State Efficiency: 82 %, Aluminum Fin/Copper Tube/Stainless Steel Heat Exchanger, 45 to 75 deg F Rise, 41 in H x 47-1/2 in W x 52-7/16 in D, ResiPack Convertible Platform, Base Tier, 1st Design Major and Minor Series, Non-Communicating Control

Features

• All Models feature Scroll® compressors for maximum efficiency and quiet operation
• Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes
• One-piece top with a drip flange to help keep water out of the unit
• Supply and return air openings feature a 1 in tall flange to prevent water migration into the ductwork
• Access panels have "weep holes" and channels to further help manage water run-off
• Easily accessible blower section complete with slide out blower
• Refrigerant connections are conveniently located for easy service diagnostics
• Easily accessible control box
• Single point wiring simplifies installation
• Rugged base rail included for improved installation and handling
• Complete factory charged, wired and run tested
• A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality
