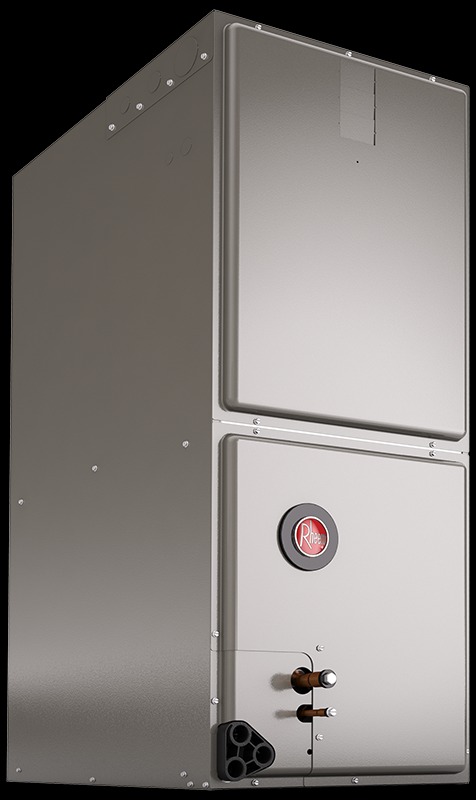

Rheem® RH1PZ3617STANNJ

Description

Rheem® Line Air Handler, Series RH1PZ Series, 3 ton Capacity, Cooling Capacity: 36000 Btu/hr, 36000 Btu/hr BTU, 208/240 V, 2.5 A, 10.55 kW, 1/3 hp, 60 Hz, 1 ph, 1075 rpm, 1000 to 1200 cfm CFM, Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow, 13.4 to 14.3 SEER Rating, NPT Female Connection, R-410A, 15 A, 3/4 in Connection, Liquid Line Size: 3/8 in, Suction Line Size: 3/4 in, Filter Size: 16 x 20 in, 1 -Stage, 2 Speed, PSC Motor, 42.5 in H x 17.5 in W x 21.69 in D, TXV Metering, N-Coil, Non-Communicating Controls

Features

• Versatile 4-way convertible design for up flow, down flow, horizontal left and horizontal right applications
• Factory installed indoor coil
• Sturdy cabinet construction with 1 in of foil faced insulation for excellent sound and insulating characteristics
• Field installed auxiliary electric heater kits provide exact heat for indoor comfort, kits include circuit breakers which meet UL and cUL requirements for service disconnect
• All Models meet or exceed 330 to 400 cfm per ton at 0.3 in of external static pressure
• Enhanced airflow up to 0.7 in external static pressure
• Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
• Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE Standard 193
