Rheem® RH1PZ3621STANNJ

Description

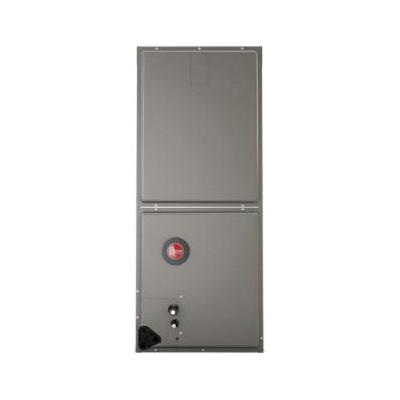

Rheem® Air Handler, RH1PZ Endeavor Line Series, 36000 Btu/hr BTU, 208 to 240 V, 60 Hz, 1 ph, R-410A, 21 in W

Features

• Versatile four-way convertible design for upflow, downflow, horizontal left and horizontal right applications
• Factory installed indoor coil
• Sturdy cabinet construction with 1 in (25.4 mm) of foil faced insulation for excellent sound and insulating characteristics
• Field-installed auxiliary electric heater kits provide exact heat for indoor comfort, kits include circuit breakers which meet UL and cUL requirements for service disconnect
• 1-1/2 ton (5.3 kW) through 5 ton (17.6 kW) models are between 42-1/2 to 55-1/2 in (1080 to 1410 mm) tall and 22 in (559 mm) deep
• All models meet or exceed 330 to 400 CFM (156 to 189 L/s) per ton at 3 in (7 kPa) of external static pressure
• Enhanced airflow up to 7 in external static pressure
• Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
• Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE Standard 193
