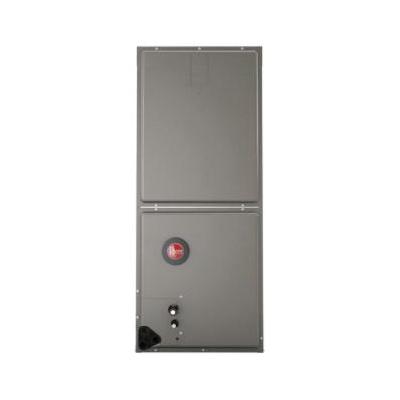

Rheem® RH1PZ4821STANNA
Rheem® Endeavor™ RH1PZ4821STANNA Multi-Poise Line Air Handler, 1600 cfm, 115 V, 5.2 A, 14.07 kW, 3/4 hp, 60 Hz
Brand: Rheem®
Item No: RH1PZ4821STANNA
Sign In for Availability
Description
Rheem® Endeavor™ Multi-Poise Line Air Handler, 4 ton Nominal Capacity, 48000 Btu/hr Cooling, 115 V, 5.2 A, 14.07 kW, 3/4 hp Rating, 60 Hz, 1 ph, 1075 rpm Rotational Speed, 1600 cfm Rating, Downflow, Horizontal, Upflow Configuration, FNPT Connection Type, R-410A, 15 A Fuse, 3/4 in Connection, 3/8 in Liquid Line, 20 x 20 in Filter, 1 Stage, 2 Speed, PSC Motor, Steel, 50.5 in H x 21 in W x 21.69 in D, Additional Information: Standard Efficiency, TXV Metering, Non-Communicating Controls, N-Coil
Features
- Peace of mind performance - relax, you're covered by one of the best warranties in the industry - 10 years limited parts
- Quiet operation - provided by a sturdy cabinet construction with 1 in of foil faced insulation for quieter sound characteristics
- Rugged steel cabinet construction - designed for added strength and versatility
Specifications
|
Additional Information |
Standard Efficiency, TXV Metering, Non-Communicating Controls, N-Coil |
|
Amperage Rating |
5.2 A |
|
CFM Rating |
1600 cfm |
|
Configuration |
Downflow, Horizontal, Upflow |
|
Connection Size |
3/4 in |
|
Connection Type |
FNPT |
|
Cooling Capacity |
48000 Btu/hr |
|
Dimensions |
50.5 in H x 21 in W x 21.69 in D |
|
Filter Size |
20 x 20 in |
|
Frequency Rating |
60 Hz |
|
Fuse Rating |
15 A |
|
HP Rating |
3/4 hp |
|
Liquid Line Size |
3/8 in |
|
Material |
Steel |
|
Motor Type |
PSC |
|
Nominal Capacity |
4 ton |
|
Number of Speeds |
2 |
|
Number of Stages |
1 |
|
Phase |
1 ph |
|
Refrigerant Type |
R-410A |
|
Rotational Speed |
1075 rpm |
|
Voltage Rating |
115 V |
|
Wattage |
14.07 kW |
