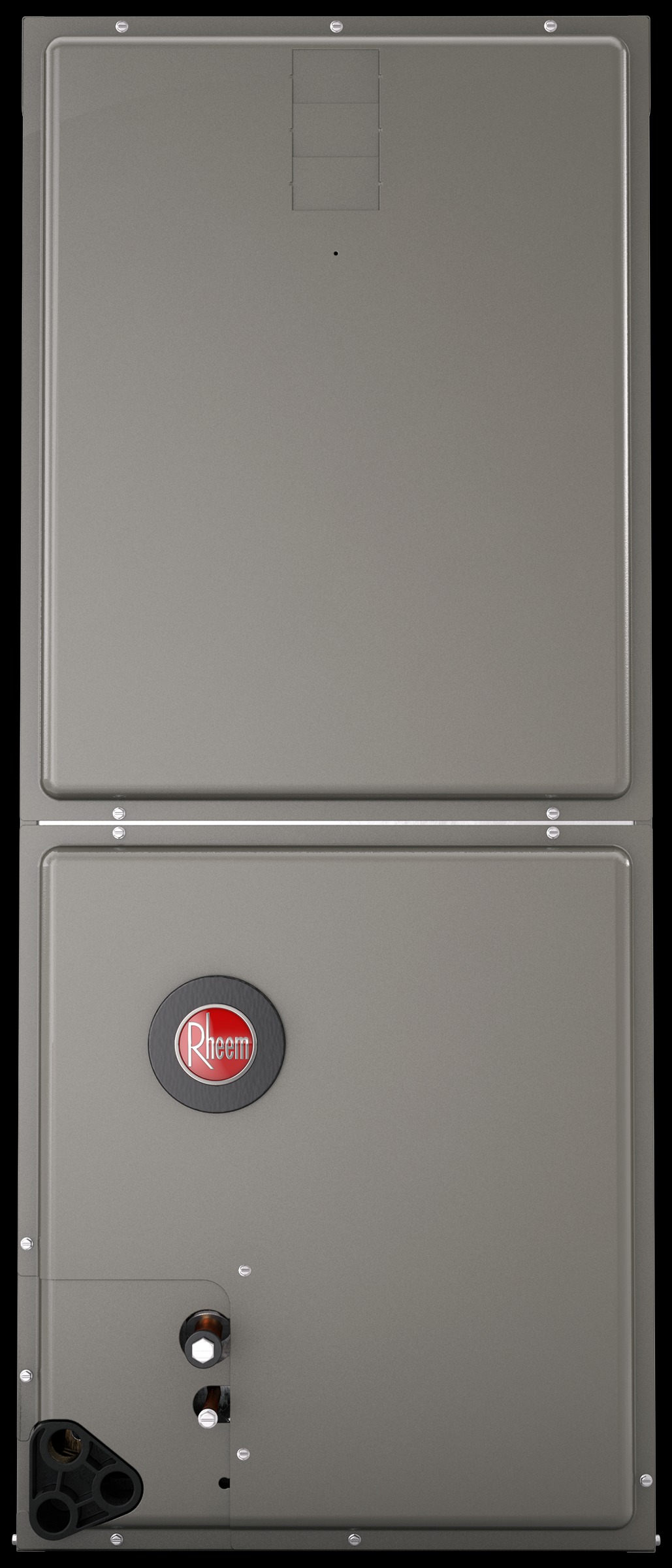

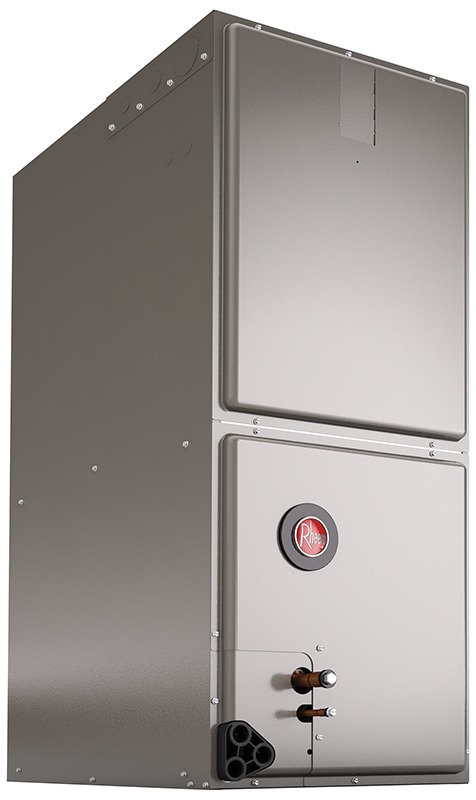

Rheem® RH1V6024STANJA

Description

Rheem® Air Handler with TEV Metering, Series: RH1V, 5 ton Nominal, 60000 Btu/hr BTU, 208/240 VAC, 17.58 kW, 3/4 hp, 60 Hz, 1 -Phase, 1800 cu-ft/min, 16 SEER, 3/8 in Sweat Liquid, 7/8 in Sweat Vapor Connection, R-410A Refrigerant, 1 -Stage, Steel, Pre-Painted, 24-1/2 in W x 55-1/2 in H x 21-11/16 in D

Features

• Attractive pre-painted cabinet exterior, rugged wall steel cabinet construction, designed for added strength and versatility
• 1 in foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance
• Four leg blower motor mount, blower housing with controls, motor and blower
• Field convertible for vertical down flow, horizontal left hand or right hand air supply
• Combustible floor base accessories fit all model sizes when required for down flow installations on combustible floors
• Indoor coil design provides low air side pressure drop, high-performance and extremely compact size
• Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing, coils are tested at the factory with an extensive refrigerant leak check, coils have copper sweat refrigerant connections, coils utilize chatleff metering device connections
• Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils
• Front refrigerant and drain connections
• ECM blower motor
• Minor - major Series
• 22-7/8 in W x 19-3/4 in D return air opening
• 11 x 11 in blower
• 3/4 in FNPT auxiliary, primary drain connection
• 23 in supply duct
