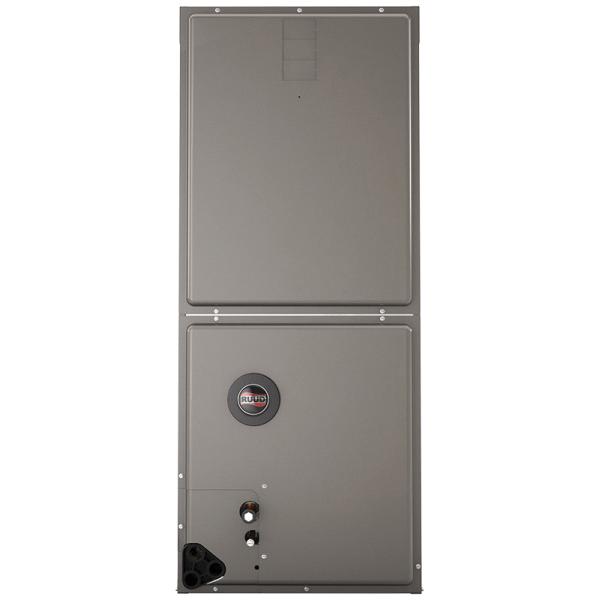

Rheem® RHMVZ2421MEACNJ

Description

Rheem® Line Air Handler, Series RHMVZ Series, 2 ton Capacity, 208/240 V, 2.7 A, 1/3 hp, 60 Hz, 1 ph, 300 to 1300 rpm, Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow, 18+ SEER Rating, NPT Female Connection, R-410A, 15 A, 3/4 in Connection, Liquid Line Size: 3/8 in, Suction Line Size: 3/4 in, Filter Size: 20 x 20 in, Steel, 42.5 in H x 21 in W x 21.69 in D, Modulating Stages of Airflow, Standard Efficiency, EEV Metering, N-Coil, Communicating Control

Features

• Truly variable speed technology allows for ultimate humidity control, quieter sound levels and contributes to year round energy savings
• Provided by modulating operation and truly variable speed airflow technology and sturdy cabinet construction with 1 in of foil faced insulation for some of the quietest sound characteristics
• With the Rheem Contractor and EcoNet® Apps, built-in EcoNet® and Bluetooth Technology makes monitoring, troubleshooting and repairing the product easier than ever before
• Seamless final install step without DIP switch configuration using the Rheem Contractor App
• The latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy savings
• Allows on the go control and receipt of system alerts by the homeowner via the EcoNet® smart thermostat and EcoNet® App
• Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion-resistant
• Allows for up flow, down flow, horizontal left and horizontal right applications, even in the smallest of spaces
• Designed for added strength and versatility
• Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect
• When tested in accordance with ASHRAE Standard 193

Specifications

Documentation
