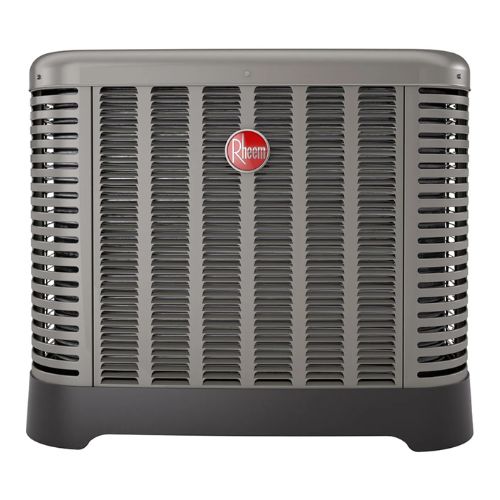

Rheem® RP14AY36AJ2NA RP14AY36AJ2NA

Rheem® RP14AY36AJ2NA

Rheem® Endeavor® Classic™ Series RP14AY36AJ2NA Heat Pump, 208-230 V, 20 A, 36000 Btu, 1/5 hp, 1 ph Phase

Brand: Rheem®

Item No: RP14AY36AJ2NA

Sign In for Availability
loading
Add To Cart

Email Print

Description

Rheem® Endeavor® Heat Pump, Classic™ Series, 208-230 V, 20 A, 234 W, 1/5 hp, 60 Hz, 1 ph Phase, 850 rpm Rotational Speed, 36000 Btu, 4077 cfm, 9 EER Rating, 14.3 SEER, 7.5 HSPF, Scroll Compressor, R-454B Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 30 A Fuse Rating, 1-Row, 19-1/2 sq-ft Face Area, 22 FPI Coil, Tonnage: 3 ton, 72 dB Sound Level, 2 Stages, 35 in H x 33-3/4 in W x 33-3/4 in D

Features

  • Swept Wing Fan Technology: Features quieter operation and improved unit acoustics
  • Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
  • Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
  • PlusOne® Expanded Valve Space: 3 in. - 4 in. - 5 in. service valve space-provides a minimum working area of 27-square inches for easier access
  • PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels-makes repairs easier and faster

    • Specifications

    Amperage Rating

    		20 A

    BTU Rating

    		36000 Btu

    CFM Rating

    		4077 cfm

    Coil Rating

    		1-Row, 19-1/2 sq-ft Face Area, 22 FPI

    Compressor Type

    		Scroll

    Dimensions

    		35 in H x 33-3/4 in W x 33-3/4 in D

    EER Rating

    		9

    Frequency Rating

    		60 Hz

    Fuse Rating

    		30 A

    HP Rating

    		1/5 hp

    HSPF Rating

    		7.5

    Liquid Line Size

    		3/8 in

    Number of Stages

    		2

    Phase

    		1 ph

    Power Rating

    		234 W

    Refrigerant Type

    		R-454B

    Rotational Speed

    		850 rpm

    SEER Rating

    		14.3

    Series

    		Classic™ Series

    Sound Level

    		72 dB

    Suction Line Size

    		3/4 in

    Tonnage

    		3 ton

    Voltage Rating

    		208-230 V
