Rheem® RP15AZ42AJ2NA

Description

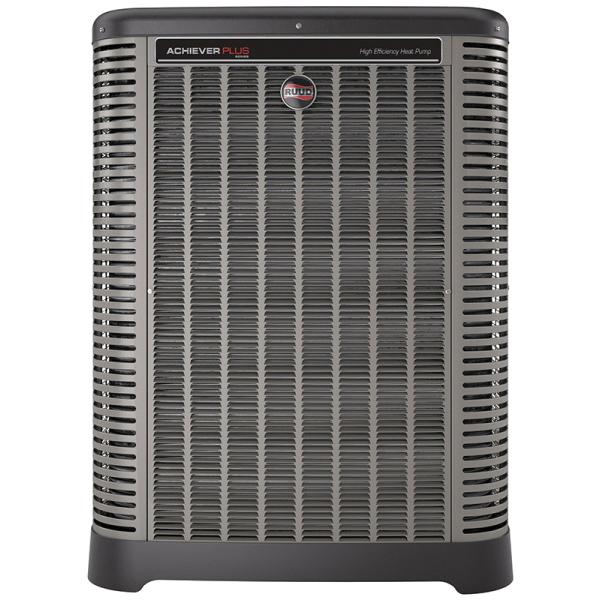

Rheem® iM Heat Pump Condenser, Series Line Achiever® Series, 208/230 V, 45 A, 12.31 kW Power, 1/5 hp, 60 Hz, 1 ph, 850 rpm, 42000 Btu/hr BTU, 4206 cfm CFM, 11.7 EER, 15.2 SEER Rating, 7.8 HSPF Rating, Compressor Type: Scroll, R-410A, Liquid Line Size: 3/8 in, Suction Line Size: 7/8 in, Tonnage: 3.5 ton, Vent, Ducted or Ductless: Vent, 72 dBA Sound, 2 -Stage, 33-3/4 in L x 33-3/4 in W x 39 in H

Features

• Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single-stage compressors
• 7 mm condenser copper coil requires less refrigerant allowing for a smaller and lighter foot print while enhancing reliability
• Inverted reversing valve allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
• PlusOne® expanded valve space - 3 to 5 in service valve space provides a minimum working area of 27 sq-in for easier access
• PlusOne® triple service access 15 in W, industry leading corner service access, two fastener, removable corner
• Individual louver panels makes repairs easier and faster
