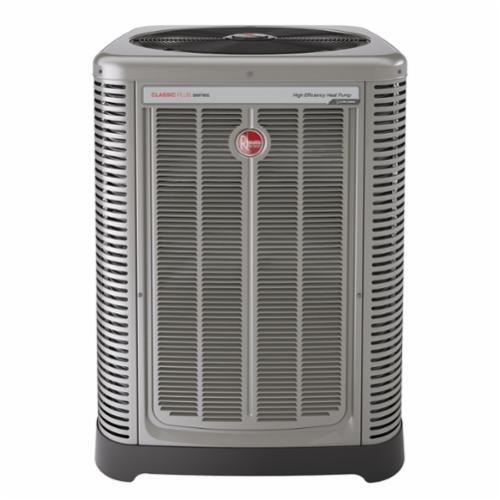

Rheem® RP1724AJVCA

Description

Rheem® Heat Pump, Classic Plus® RP17 Series, Model: RP1724, 208 to 230 V, 21 A, 7.03 kW, 1/6 hp, 60 Hz, 1 ph Phase, 1075 rpm Rotational Speed, 24000 Btu/hr, 3250 cfm, 13 EER Rating, 18.5 SEER, 8.2 HSPF, Sweat Connection, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 35 A Fuse Rating, 19.8 sq-ft Face Area, 18 FPI Coil, Direct Drive, Tonnage: 2 ton, 71.3 dBA Sound Level, 3 Stages, Steel, Finish: Galvanized/Powder-Coated, 33-3/4 in L x 33-3/4 in W x 35 in H, Additional Information: 1 Number of Rows

Features

• EcoNet® smart home system provides advanced air and water control for maximum energy savings and ideal comfort
• Copeland™ scroll variable-speed compressor, this inverter-driven compressor provides three-stages of heating and cooling operation for maximum comfort and energy savings
• Equipped with electronic expansion valve to precisely control variable refrigerant flow
• New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
• Improved tubing design reduces vibration and stress, making unit quieter and reducing opportunity for leaks
• Optimized defrost characteristics - decrease defrosting and provide better home comfort
• Powder-coated paint finish - for a long-lasting professional finish
• Optimized reversing valve sizing improves shifting performance for quieter unit operation and increased life of the system
• Enhanced mufflers help to dissipate vibration energy for quieter unit operation
• Modern cabinet aesthetics - increased curb appeal with visually appealing design
• Curved louver panels - provide ultimate coil protection, enhance cabinet strength and increase cabinet rigidity
• Optimized fan orifice - optimizes airflow and reduces unit sound
• Rust-resistant screws confirmed through 1500 hr salt spray testing
• PlusOne™ expanded valve space - 3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access
• Integrated heat pump lift receptacle allows standard CPVC stands to be inserted into the base
• PlusOne™ triple service access - 15 in W, industry leading corner service access makes repairs easier and faster
• Two-fastener removable corner allows optimal access to internal unit components, individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly
• Diagnostic service window with two-fastener opening provides access to the TXV valves and the heat pump reversing valve before opening the unit
• External gauge port access - allows easy connection of "low-loss" gauge ports
• One-row condenser coil makes unit lighter and allows through coil cleaning to maintain out of the box performance
