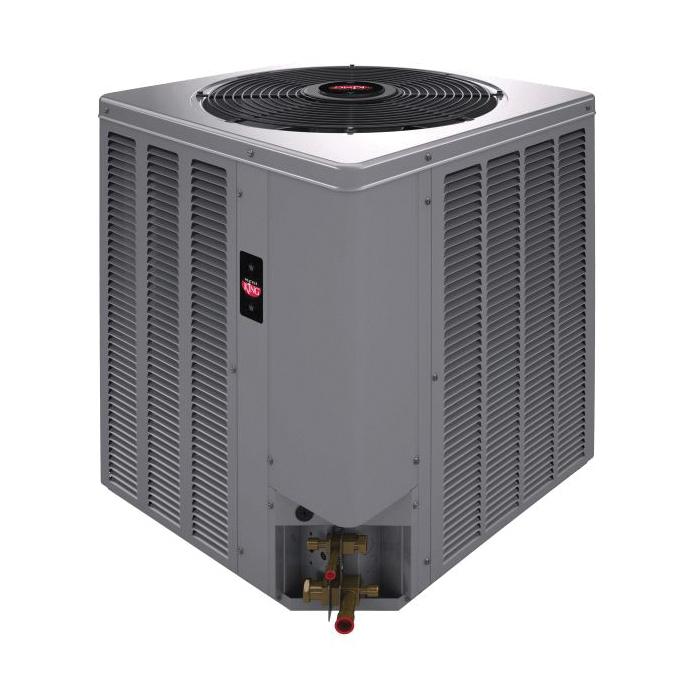

Rheem® WA1348BJ1NA

Rheem® WA13 Series WA1348BJ1NA Air Conditioner Condenser, 208 to 230 V, 48000 Btu/hr

Brand: Rheem®

Item No: WA1348BJ1NA

Sign In for Availability
loading

Description

Rheem® Air Conditioner Condenser, Series: WA13 Series, 48000 Btu/hr, 208 to 230 V, 14.07 kW, 60 Hz, 1 ph, 1500 cfm, 3571 cfm CFM Rating, 11 EER, 13 SEER, 75 dBA, Ground Level, Rooftop Mount, 35 to 40 A Fuse, Aluminum/Copper, 31-5/8 in L x 31-5/8 in W x 35-15/16 in H

Features

  • Outdoor air conditioner designed for ground level or rooftop installations, these units offer comfort and dependability for single, multi-family and light commercial applications
  • Painted louvered steel cabinet
  • Easily accessible control box
  • Condenser coils constructed with copper tubing and enhanced aluminum fins
  • Grille/motor-mount for quiet fan operation
  • Filter drier (shipped-not installed)

Specifications

BTU Rating

48000 Btu/hr

CFM Rating

1500 cfm, 3571 cfm

Dimensions

31-5/8 in L x 31-5/8 in W x 35-15/16 in H

EER Rating

11

Frequency Rating

60 Hz

Fuse Rating

35 to 40 A

Material

Aluminum/Copper

Mounting Type

Ground Level, Rooftop

Phase

1 ph

SEER Rating

13

Series

WA13 Series

Sound Level

75 dBA

Voltage Rating

208 to 230 V

Wattage

14.07 kW
