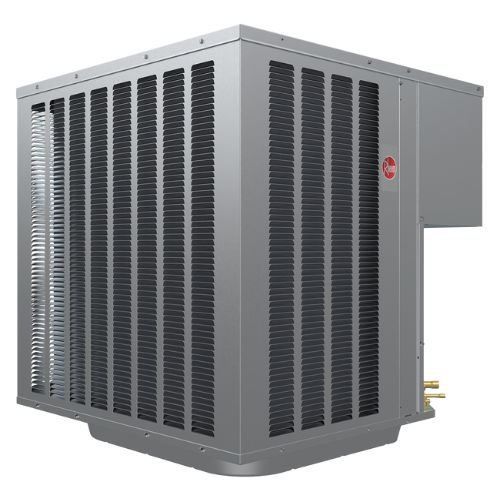

Rheem® WP14AZ18AJ2NA
Rheem® Endeavor™ Line Choice® Series WP14AZ18AJ2NA iC Heat Pump Condenser, 208/230 V, 11 A, 18000 Btu/hr BTU, 1/7 hp
Brand: Rheem®
Item No: WP14AZ18AJ2NA
Sign In for Availability
Description
Rheem® iC Heat Pump Condenser, Series Line Choice® Series, 208/230 V, 11 A, 5.28 kW Power, 1/7 hp, 60 Hz, 1 ph, 1075 rpm, 18000 Btu/hr BTU, 2401 cfm CFM, 10.4 EER, 14.3 SEER Rating, 7.6 HSPF Rating, Compressor Type: Scroll, R-410A, Liquid Line Size: 3/8 in, Suction Line Size: 3/4 in, Tonnage: 1.5 ton, Vent, Ducted or Ductless: Vent, 73 dBA Sound, 2 -Stage, Steel, 29.543 in L x 29.543 in W x 25.17 in H
Features
- Fully louvered steel cabinet - features durable construction to add protection from yard hazards, weather corrosion
- Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single-stage compressors
- Inverted reversing valve allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
- Easily accessible control box ease of installation and serviceability
Specifications
|
Amperage Rating |
11 A |
|
BTU Rating |
18000 Btu/hr |
|
CFM Rating |
2401 cfm |
|
Compressor Type |
Scroll |
|
Dimensions |
29.543 in L x 29.543 in W x 25.17 in H |
|
EER Rating |
10.4 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/7 hp |
|
HSPF Rating |
7.6 |
|
Liquid Line Size |
3/8 in |
|
Material |
Steel |
|
Number of Stages |
2 |
|
Phase |
1 ph |
|
Power Rating |
5.28 kW |
|
Refrigerant Type |
R-410A |
|
Rotational Speed |
1075 rpm |
|
SEER Rating |
14.3 |
|
Series |
Line Choice® Series |
|
Sound Level |
73 dBA |
|
Suction Line Size |
3/4 in |
|
Tonnage |
1.5 ton |
|
Vent, Ducted or Ductless |
Vent |
|
Voltage Rating |
208/230 V |
