RIB® RIB2421C-N4

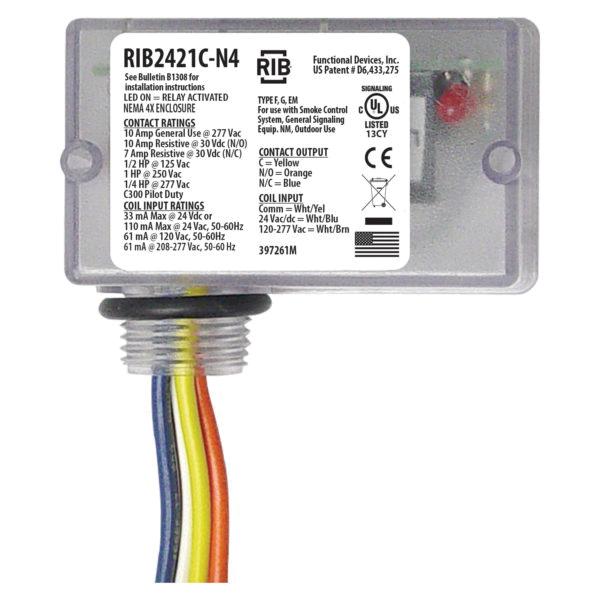

RIB® RIB2421C-N4 Pilot Control Relay, 10 A, SPST, 24 VAC/VDC, 120 to 277 VAC Coil
Brand: RIB®
Item No: RIB2421C-N4
Sign In for Availability
Description
RIB® Pilot Control Relay, 10 A, 24 VAC/VDC, 120 to 277 VAC, 3 VAC, 3.8 VDC, Contact Configuration: SPST, Contact Rating: 10 A at 277 VAC, 10 A Resistive at 30 VDC NO, 7 A Resistive at 30 VDC NC, Wire Terminal, Operating Time: 20 ms, 10 million cycles Mechanical Operating, NEMA 1 Enclosure, -30 to 140 deg F, 1.7 in H, 2.8 in W, 1-1/2 in Depth, 5 to 95% Non-Condensing Humidity
Specifications
|
Additional Information |
5 to 95% Non-Condensing Humidity |
|
Amperage Rating |
10 A |
|
Coil Voltage |
24 VAC/VDC, 120 to 277 VAC |
|
Contact Configuration |
SPST |
|
Contact Rating |
10 A at 277 VAC, 10 A Resistive at 30 VDC NO, 7 A Resistive at 30 VDC NC |
|
Depth |
1-1/2 in |
|
Drop Down Voltage |
3 VAC, 3.8 VDC |
|
Enclosure Type |
NEMA 1 |
|
Height |
1.7 in |
|
Operating Cycles |
10 million cycles Mechanical |
|
Operating Time |
20 ms |
|
Temperature Rating |
-30 to 140 deg F |
|
Terminal Type |
Wire |
|
Width |
2.8 in |
