Sporlan® 100425

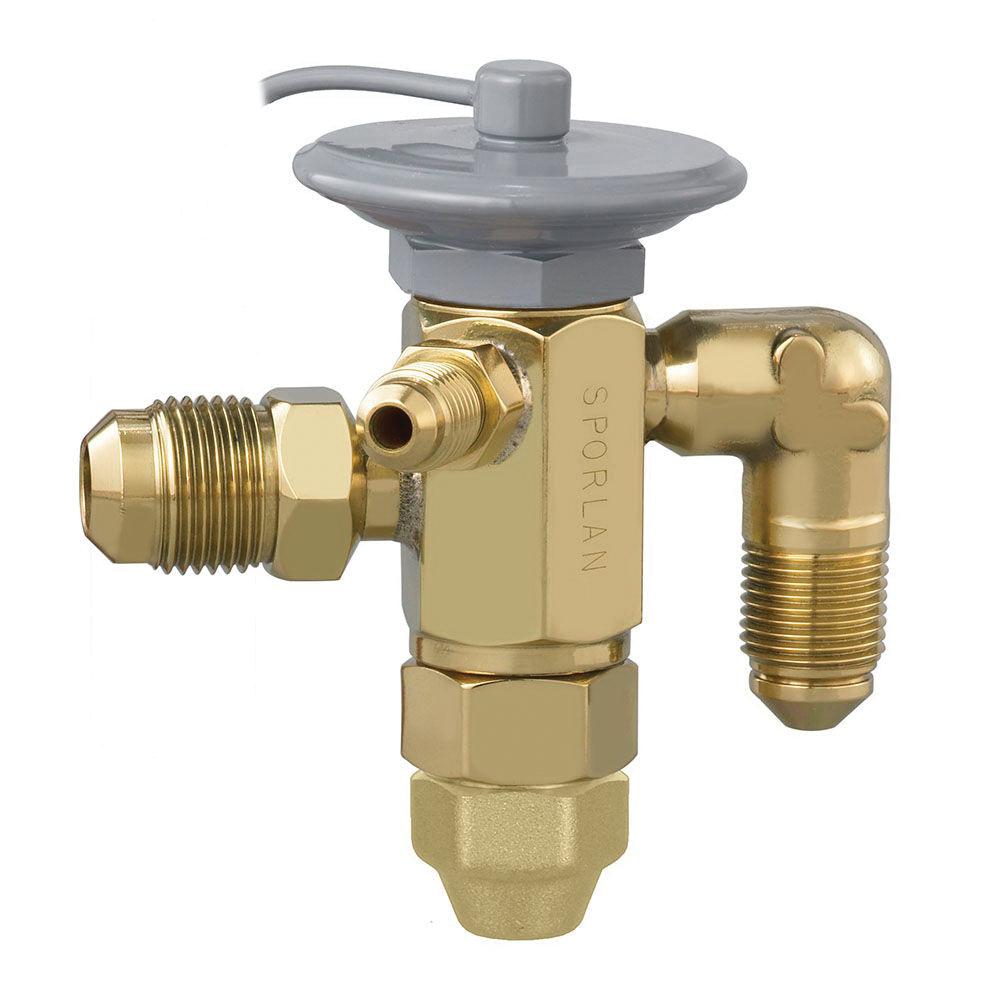

Sporlan® 100425 Thermostatic Expansion Valve, 3/8 x 1/2 in, SAE Flared, R-22 (Green) Refrigerant, Internal Equalizer
Brand: Sporlan®
Item No: BFV-A-C
Sign In for Availability
Description
The Sporlan® type BF-EBF-SBF balance ported thermostatic expansion valves have a brass bar stock body with flare or sweat connections, adjustable superheat, long-lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation. For over 80 Year the Sporlan® division of Parker Hannifin has set the industry standard for the development and manufacture of leading edge HVACR components. Our outside technical sales force and application engineering team focuses on refrigeration system applications and troubleshooting for service technicians, distribution channel partners and original equipment manufacturers.
Sporlan® Thermostatic Expansion Valve, 3/8 x 1/2 in Nominal, SAE Flared Connection, 0.75 to 1.5 ton Nominal Capacity, R-22 (Green) Refrigerant, Internal Equalizer, 43 Element, 30 in Capillary Length, Type C Charge Type, 450 psi, 100 Mesh Removable Strainer Type, Brass Body, Brass Seat, 3.76 in H
Features
- Knife edge to metal joint
- Stainless steel pin
- Stainless steel pushrod
Specifications
|
Body Material |
Brass |
|
Capillary Length |
30 in |
|
Charge Type |
Type C |
|
Connection Type |
SAE Flared |
|
Dimensions |
3.76 in H |
|
Element Size |
43 |
|
Equalizer Type |
Internal |
|
Nominal Capacity |
0.75 to 1.5 ton |
|
Nominal Size |
3/8 x 1/2 in |
|
Pressure Rating |
450 psi |
|
Refrigerant Type |
R-22 (Green) |
|
Seat Material |
Brass |
|
Strainer Type |
100 Mesh Removable |
