Sporlan® 401618

Description

The liquid line sealed model filter driers - Sporlan® Catch-All® series provide unparalleled control of the most harmful contaminants in HVAC and R systems. Moisture, acids and solid debris are effectively captured to ensure the long life, efficiency and capacity of today's high performance air conditioning and refrigeration systems. With multiple sizes and fitting configurations, it is easy to find the right model for systems up to 20 ton.

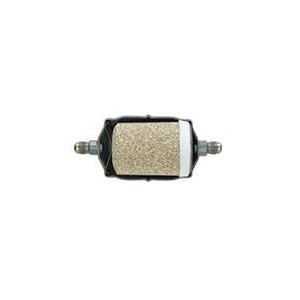

Sporlan® Filter Dryer, Model: C-419-S, ODF Solder, 650 psi, 41 cu-in, R-410A, Sub-Critical CO2, 67 sq-in Surface Area, 5 to 15 ton Flow, 3-1/2 in Dia x 9-3/4 in L

Features

• Complete contaminant control to protect and extend system life and ensure system reliability
• High performance desiccant package provides high water capacity and acid capacity
• Porous molded core provides excellent filtration of solid debris for TEV and compressor protection
• Sizes from 3-60 cu-in and 1/4-1-1/8 in fittings for use up to 20 ton cooling capacity
• Models available with activated charcoal for use during system cleanup
• CSG models have an integrated liquid and moisture indicating sight glass to allow visual refrigerant examination
• SAE flare fittings and solid copper ODF fittings available
